XP 20ER-FM:M8345
XP 20ER-FM:M8345

XP 20ER-FM:M8345

UGC DOR6756180
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.60 CAD - $51.60 CAD
$51.60 CAD
$51.60 CAD - $51.60 CAD
$51.60 CAD

Vendu en lots de : 10

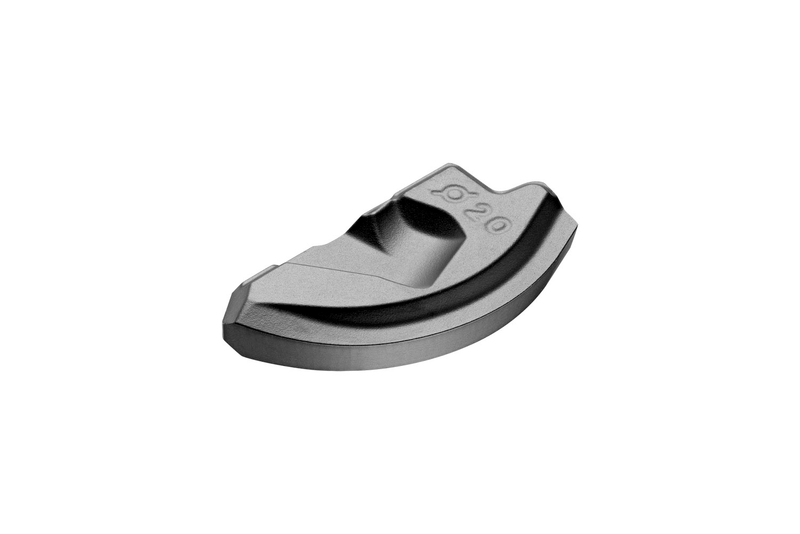

Plaquette pour fraisage en copiage avec segment à bout sphérique, pour un diamètre de 20 mm, pour une profondeur de coupe maximale de 10 mm, géométrie FM et revêtement PVD carbure WC-Co M8345 dans la gamme de nuances ISO P30-P50 pour l'usinage de l'acier avec les fraises à copier K3-CXP

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XP 20ER-FM:M8345
GradeM8345
Chipbreaker (CBMD)FM
Product Number6756180
Product FamilyXP
Insert Geometry
Insert DesignXP
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6756180
EAN3603602915467
File Type Download

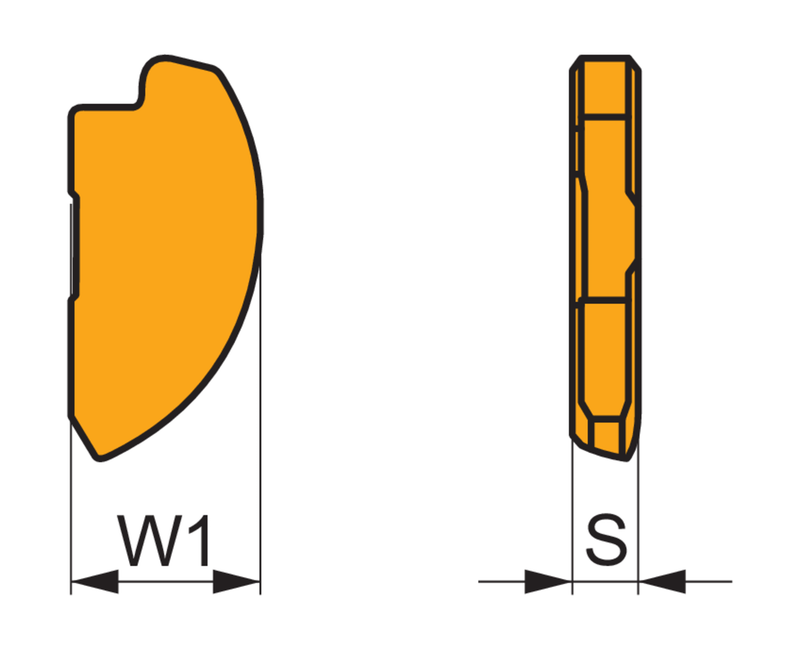

XP 20ER-FM:M8345 — Line Drawing PDF Download
