PNMQ 1308DNSN:M8345
PNMQ 1308DNSN:M8345

PNMQ 1308DNSN:M8345

UGC DOR6756181
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.74 CAD - $56.74 CAD
$56.74 CAD
$56.74 CAD - $56.74 CAD
$56.74 CAD

Vendu en lots de : 5

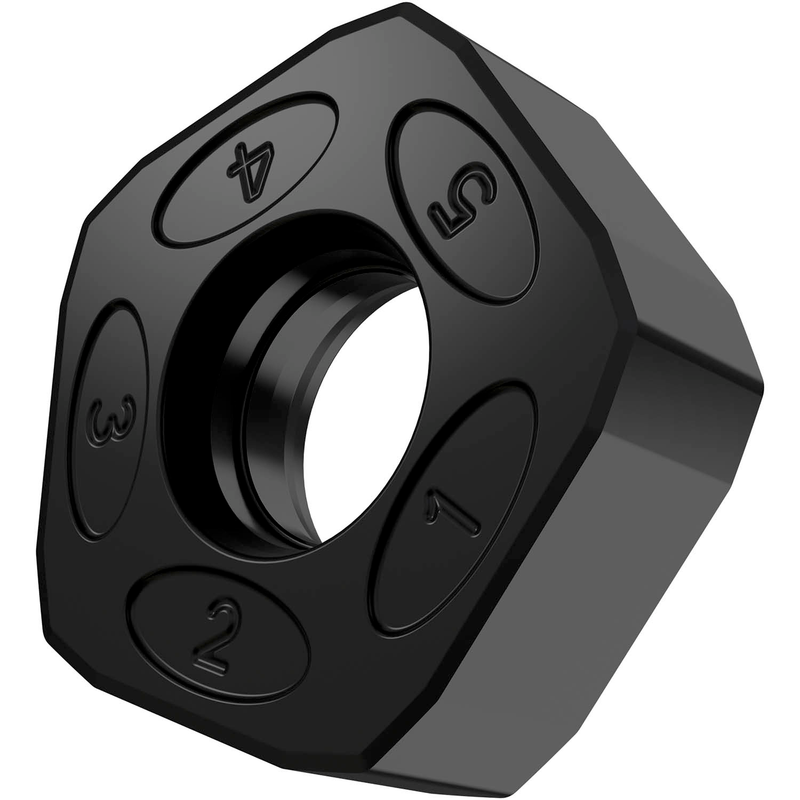

Plaquette de fraisage double face PNMQ 1308, pentagonale pour une profondeur de coupe maximale de 10 mm, avec un rayon de coin de 0.8 mm, une précision de positionnement selon la classe de tolérance ISO M avec arêtes de coupe et facette arrondies, en carbure WC-Co revêtu PVD M8345 pour l'usinage avec fraises à surfacer SPN13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PNMQ 1308DNSN:M8345
GradeM8345
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756181
Product FamilyPNMQ 13

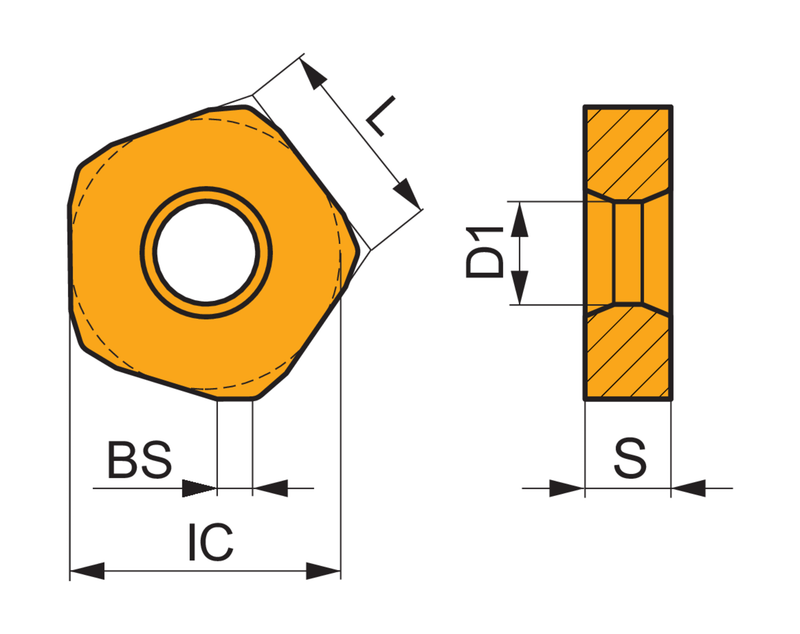

Insert Geometry
Insert DesignPNMQ
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.961"
Inscribed Circle Dia. — mm (IC)24.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6756181
EAN3603602915474
File Type Download
PNMQ 1308DNSN:M8345 — Line Drawing PDF Download
