PDMX 0905ZEER-M:M9340
PDMX 0905ZEER-M:M9340

PDMX 0905ZEER-M:M9340

UGC DOR6756191
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 CAD - $22.76 CAD
$22.76 CAD
$22.76 CAD - $22.76 CAD
$22.76 CAD

Vendu en lots de : 10

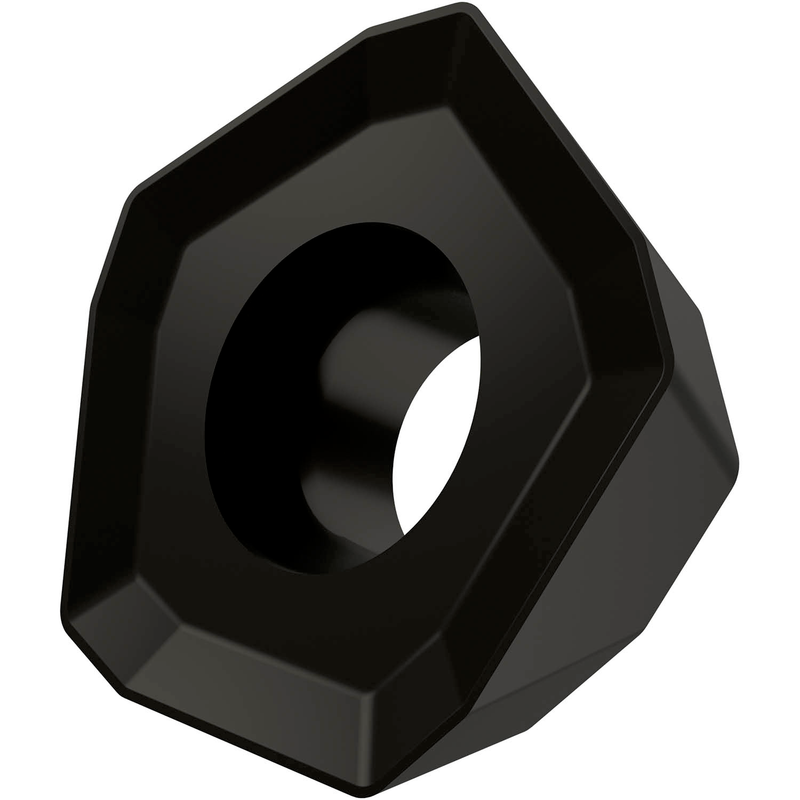

Plaquette de fraisage simple-face PDMX 0905, pentagonale pour une profondeur de coupe maximale de 2 mm, avec un rayon de coin de ", une précision de positionnement selon la classe de tolérance ISO M et une géométrie M à arêtes vives, en carbure WC-Co revêtu MT-CVD M9340 dans la plage de grades ISO M30-M40 pour l'usinage des aciers inoxydables avec des fraises à avance élevée SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDMX 0905ZEER-M:M9340
GradeM9340
Chipbreaker (CBMD)M
Product Number6756191
Product FamilyPDMX 09

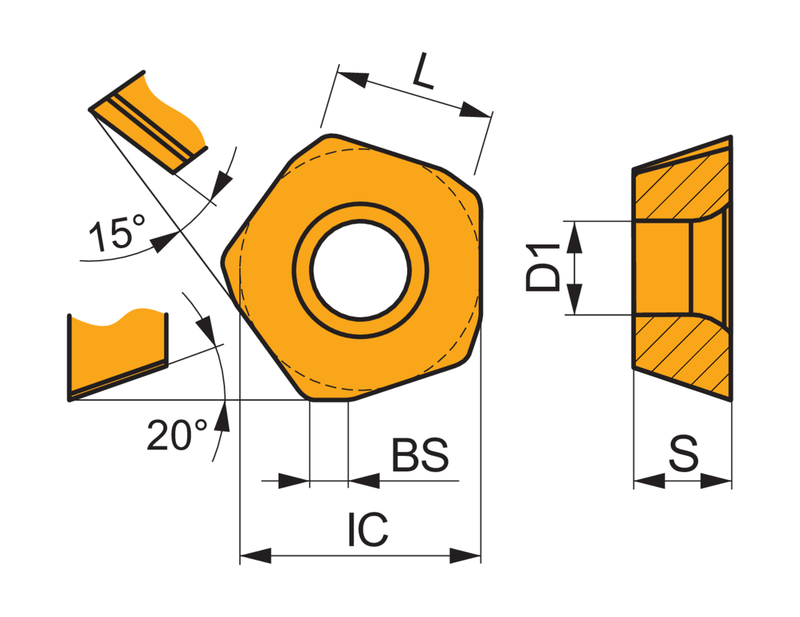

Insert Geometry
Insert DesignPDMX
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756191
EAN3603602915573
File Type Download
PDMX 0905ZEER-M:M9340 — Line Drawing PDF Download
