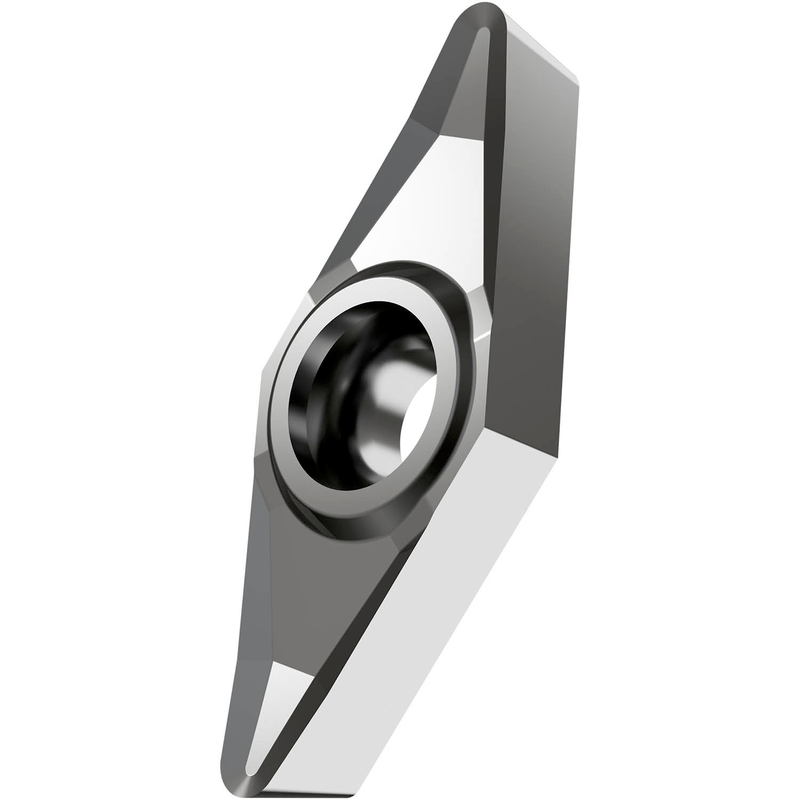

VCGT 1.21.50.5F-AL:HF7
VCGT 1.21.50.5F-AL:HF7

VCGT 1.21.50.5F-AL:HF7

UGC DOR6756194
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.79 CAD - $16.79 CAD
$16.79 CAD
$16.79 CAD - $16.79 CAD
$16.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 5/32", épaisseur 3/32", rayon de bec 1/128", précision de positionnement selon la classe de tolérance ISO G, brise-copeaux AL à arêtes vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 1.21.50.5F-AL:HF7
Product Name (ISO)VCGT 070202F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6756194
Product FamilyTCHCV
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.071"
Depth of Cut Max — mm (APMX)1.8 mm
Tool Information
Reference Numbers
EDP Number6756194
EAN3603602915603
File Type Download
VCGT 1.21.50.5F-AL:HF7 — Line Drawing PDF Download
