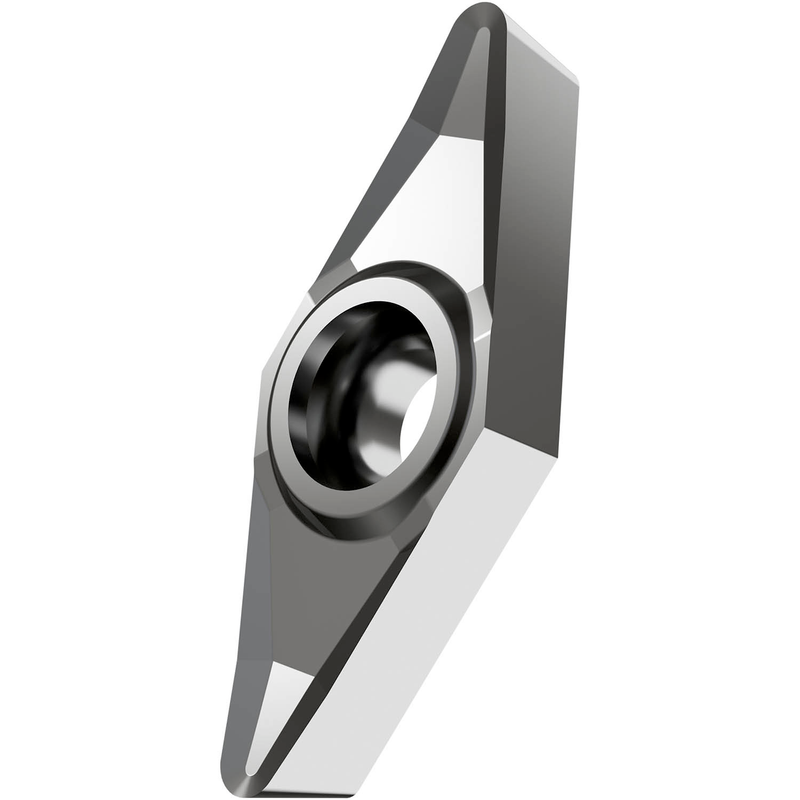

VCGT 2.520.5F-AL:HF7
VCGT 2.520.5F-AL:HF7

VCGT 2.520.5F-AL:HF7

UGC DOR6756198
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.11 CAD - $20.11 CAD
$20.11 CAD
$20.11 CAD - $20.11 CAD
$20.11 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur 1/8", rayon de bec 1/128", précision de l'indexage selon la classe de tolérance ISO G, brise-copeaux AL avec arêtes vives, en qualité HF7, un carbure WC-Co à grain fin non revêtu dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.5F-AL:HF7
Product Name (ISO)VCGT 130302F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6756198
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - à 35° d'angle d'ouverture
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756198
EAN3603602915641
File Type Download
VCGT 2.520.5F-AL:HF7 — Line Drawing PDF Download
