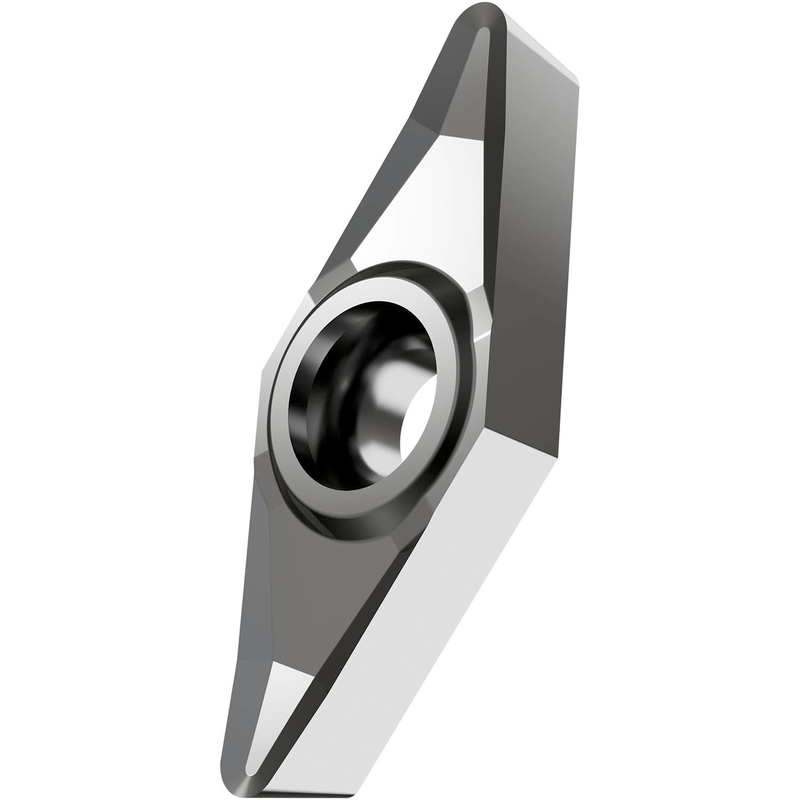

VCGT 2.522F-AL:HF7
VCGT 2.522F-AL:HF7

VCGT 2.522F-AL:HF7

UGC DOR6756204
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.79 CAD - $18.79 CAD
$18.79 CAD
$18.79 CAD - $18.79 CAD
$18.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/32", précision de positionnement selon la classe de tolérance ISO G, brise-copeaux AL avec des arêtes vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu dans la gamme ISO N10-N25, pour l'usinage léger à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522F-AL:HF7
Product Name (ISO)VCGT 130308F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6756204
Product FamilyVCGT
Insert Geometry
Insert DesignTVCG
Insert Shape Code (SC)V - angle de 35° inclus (rhombique)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756204
EAN3603602915702
File Type Download
VCGT 2.522F-AL:HF7 — Line Drawing PDF Download
