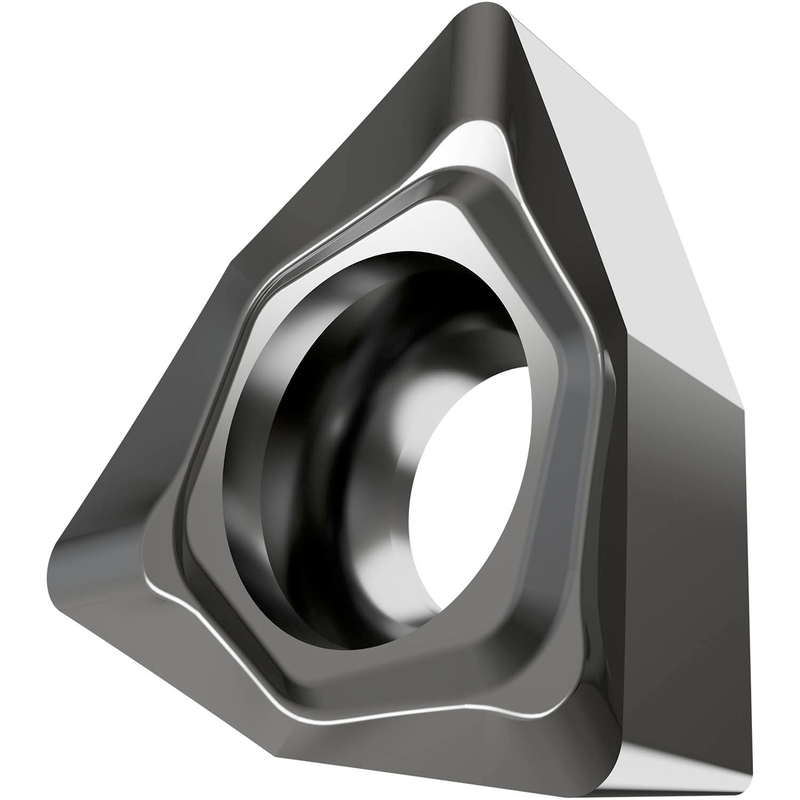

WCGT 32.51F-AL:T0315
WCGT 32.51F-AL:T0315

WCGT 32.51F-AL:T0315

UGC DOR6756206
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigonale 80° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/64", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 32.51F-AL:T0315
Product Name (ISO)WCGT 06T304F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756206
Product FamilyCMGT
Insert Geometry
Insert DesignWCGT
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6756206
EAN3603602915726
File Type Download
WCGT 32.51F-AL:T0315 — Line Drawing PDF Download
