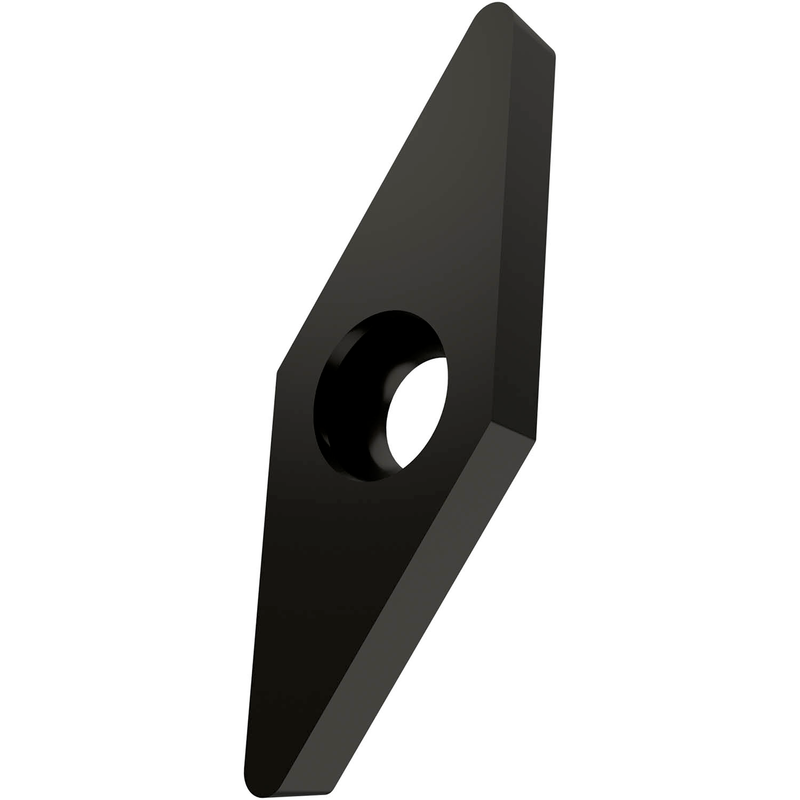

VCGW 2.520.5:T5305
VCGW 2.520.5:T5305

VCGW 2.520.5:T5305

UGC DOR6756218
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.76 CAD - $20.76 CAD
$20.76 CAD
$20.76 CAD - $20.76 CAD
$20.76 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 5/16", une épaisseur de 1/8", un rayon de bec de 1/128" et une précision d'indexation selon la classe de tolérance ISO G, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour la finition de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGW 2.520.5:T5305
Product Name (ISO)VCGW 130302:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756218
Product FamilyVCGW
Insert Geometry
Insert DesignVCGW
Insert Shape Code (SC)V - angle de 35° inclus (rhombique)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756218
EAN3603602915849
File Type Download
VCGW 2.520.5:T5305 — Line Drawing PDF Download
