XP 16ER-FM:M8310
XP 16ER-FM:M8310

XP 16ER-FM:M8310

UGC DOR6756232
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.94 CAD - $45.94 CAD
$45.94 CAD
$45.94 CAD - $45.94 CAD
$45.94 CAD

Vendu en lots de : 10

Plaquette pour fraise à copier à bout sphérique pour un diamètre de 16 mm, pour une profondeur de coupe maximale de 8 mm, géométrie FM et carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10 et K01-K10 pour l'usinage de l'acier et de la fonte avec fraises à copier K3-CXP

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XP 16ER-FM:M8310
GradeM8310
Chipbreaker (CBMD)FM
Product Number6756232
Product FamilyXP
Insert Geometry
Insert DesignXP
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.079"
Insert Thickness — mm (S)2.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6756232
EAN3603602915986
File Type Download

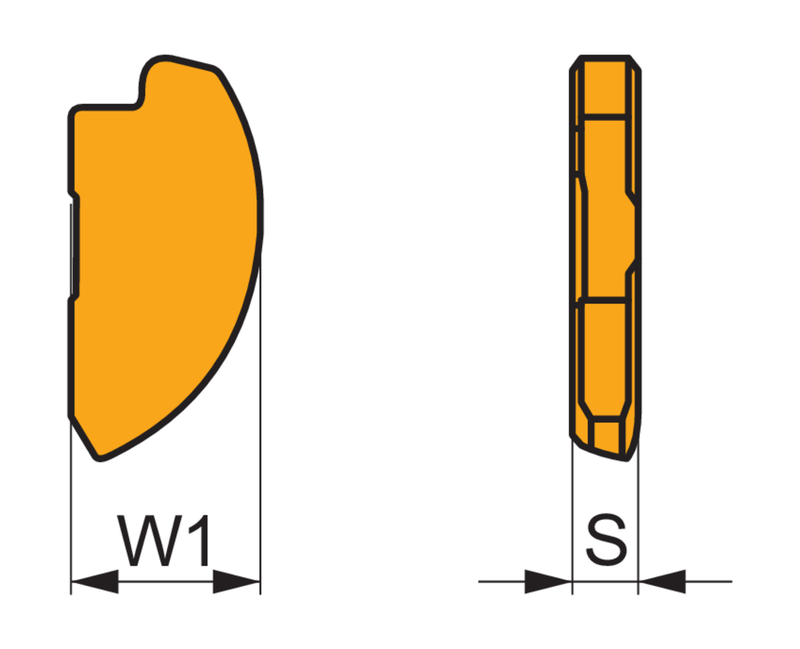

XP 16ER-FM:M8310 — Line Drawing PDF Download
