RCMT 1204MOEN-F:M8310
RCMT 1204MOEN-F:M8310

RCMT 1204MOEN-F:M8310

UGC DOR6756236
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.14 CAD - $17.14 CAD
$17.14 CAD
$17.14 CAD - $17.14 CAD
$17.14 CAD

Vendu en lots de : 10

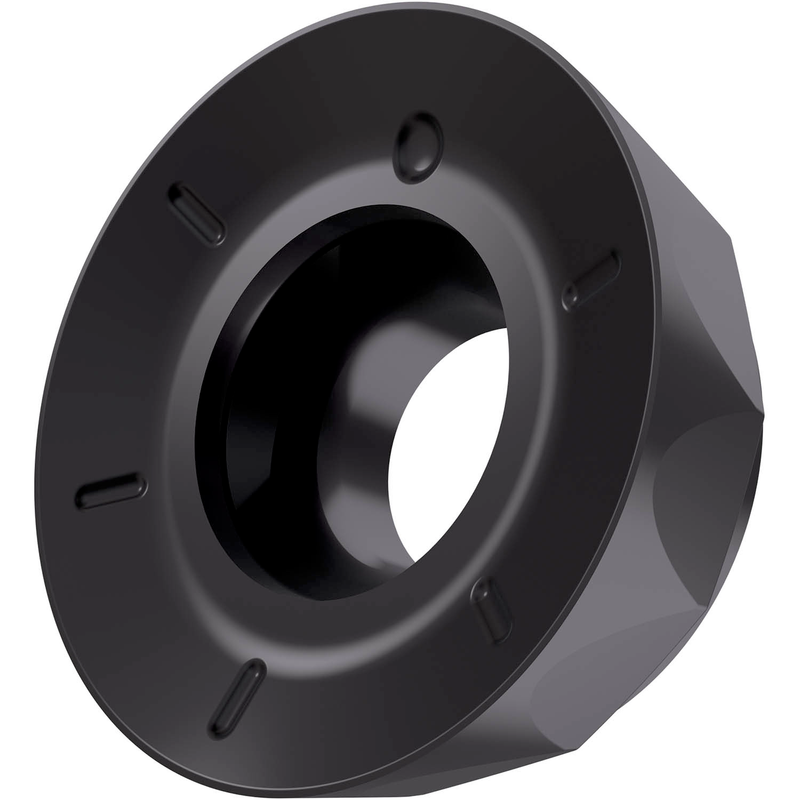

Plaquette de fraisage simple face RCMT 1204 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 6 mm (0,2362 po), avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO M et une géométrie F avec arêtes de coupe arrondies, en carbure WC-Co à grain fin revêtu PVD M8310 dans la gamme ISO P01-P10 pour l'usinage de l'acier avec les fraises à copier SRC12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOEN-F:M8310
GradeM8310
Chipbreaker (CBMD)F
Product Number6756236
Product FamilyRCMT 12
Insert Geometry
Insert DesignMRCT
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6756236
EAN3603602916020
File Type Download

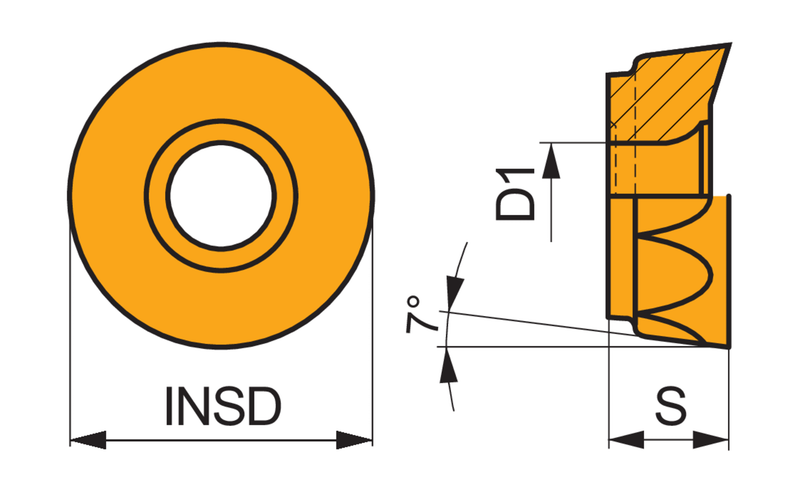

RCMT 1204MOEN-F:M8310 — Line Drawing PDF Download
