ZP 20ER-FM:M8310
ZP 20ER-FM:M8310

ZP 20ER-FM:M8310

UGC DOR6756242
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.60 CAD - $51.60 CAD
$51.60 CAD
$51.60 CAD - $51.60 CAD
$51.60 CAD

Vendu en lots de : 10

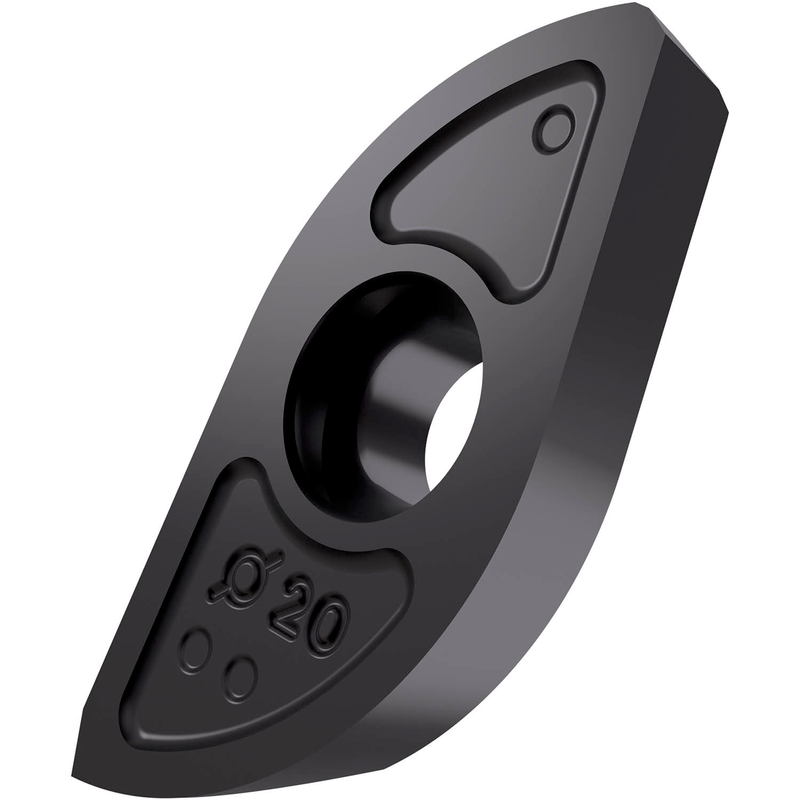

Plaquette de fraisage par copiage à nez sphérique indexable pour un diamètre de 20 mm pour une profondeur de coupe maximale de 17,9 mm, géométrie FM et carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10 et K01-K10 pour l'usinage de l'acier et de la fonte avec des fraises à copier L2-SZPfraise à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 20ER-FM:M8310
GradeM8310
Chipbreaker (CBMD)FM
Product Number6756242
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Design spécifique
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.705"
Depth of Cut Max — mm (APMX)17.9 mm
Tool Information
Reference Numbers
EDP Number6756242
EAN3603602916082
File Type Download
ZP 20ER-FM:M8310 — Line Drawing PDF Download
