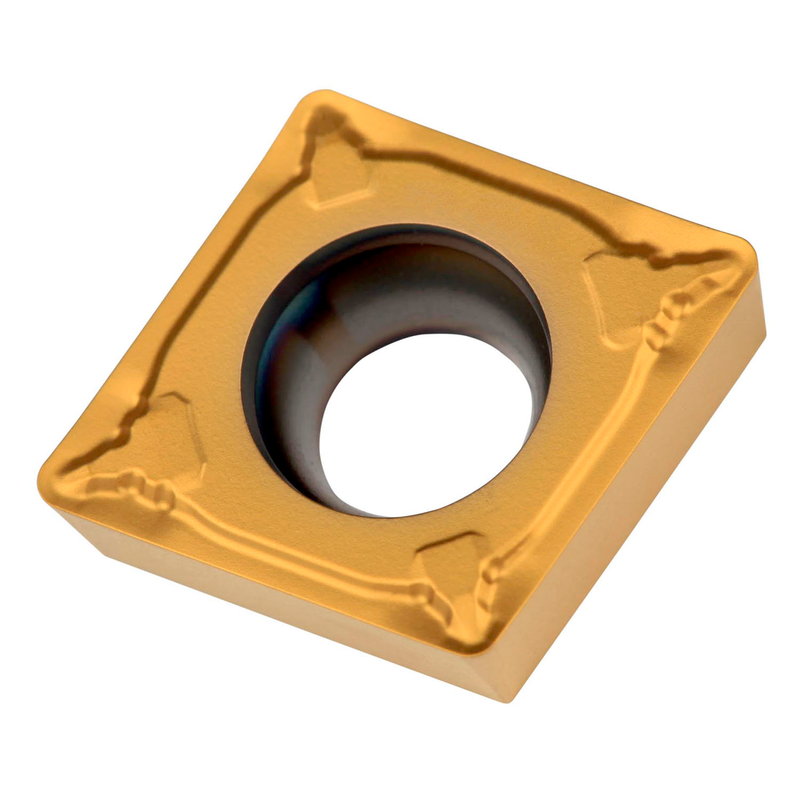

CCMT 32.50.5-UR:TT310
CCMT 32.50.5-UR:TT310

CCMT 32.50.5-UR:TT310

UGC DOR6756254
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.64 CAD - $12.64 CAD
$12.64 CAD
$12.64 CAD - $12.64 CAD
$12.64 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 3/8", une épaisseur de 5/32", un rayon de bec de 1/128" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance TT310, un cermet revêtu PVD dans la plage ISO P10-P25, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.50.5-UR:TT310
Product Name (ISO)CCMT 09T302E-UR:TT310
GradeTT310
Chipbreaker (CBMD)VOUS
Product Number6756254
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756254
EAN3603602916204
File Type Download
CCMT 32.50.5-UR:TT310 — Line Drawing PDF Download
