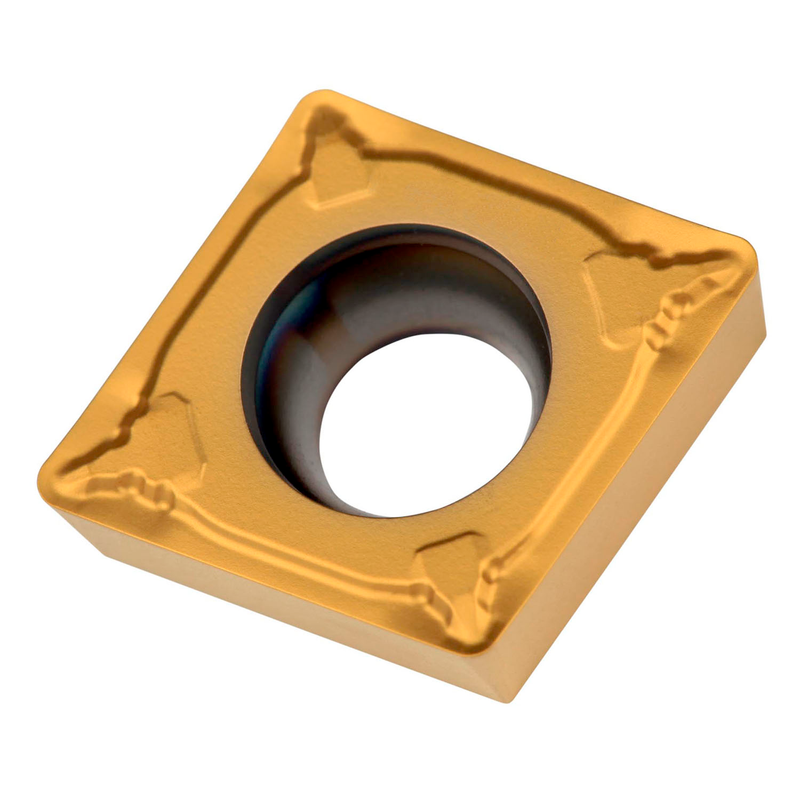

CCMT 32.52-UR:TT310
CCMT 32.52-UR:TT310

CCMT 32.52-UR:TT310

UGC DOR6756256
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR, en nuance TT310, un cermet revêtu PVD de la plage ISO P10-P25, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.52-UR:TT310
Product Name (ISO)CCMT 09T308E-UR:TT310
GradeTT310
Chipbreaker (CBMD)VOUS
Product Number6756256
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle d'inclinaison rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756256
EAN3603602916228
File Type Download
CCMT 32.52-UR:TT310 — Line Drawing PDF Download
