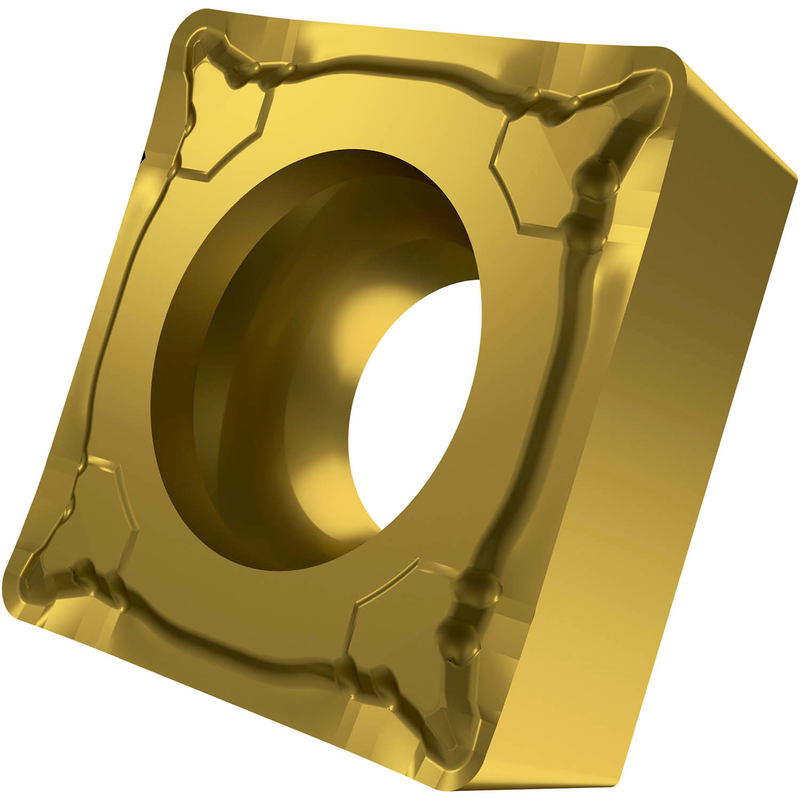

SCMT 32.52-UR:TT310
SCMT 32.52-UR:TT310

SCMT 32.52-UR:TT310

UGC DOR6756262
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette positive simple face à 7° de dégagement, carrée, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux UR, en nuance TT310, un cermet revêtu PVD dans la gamme ISO P10-P25, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 32.52-UR:TT310
Product Name (ISO)SCMT 09T308E-UR:TT310
GradeTT310
Chipbreaker (CBMD)VOUS
Product Number6756262
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756262
EAN3603602916280
File Type Download
SCMT 32.52-UR:TT310 — Line Drawing PDF Download
