XDHW 10T310SN:M8310
XDHW 10T310SN:M8310

XDHW 10T310SN:M8310

UGC DOR6756269
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.29 CAD - $19.29 CAD
$19.29 CAD
$19.29 CAD - $19.29 CAD
$19.29 CAD

Vendu en lots de : 10

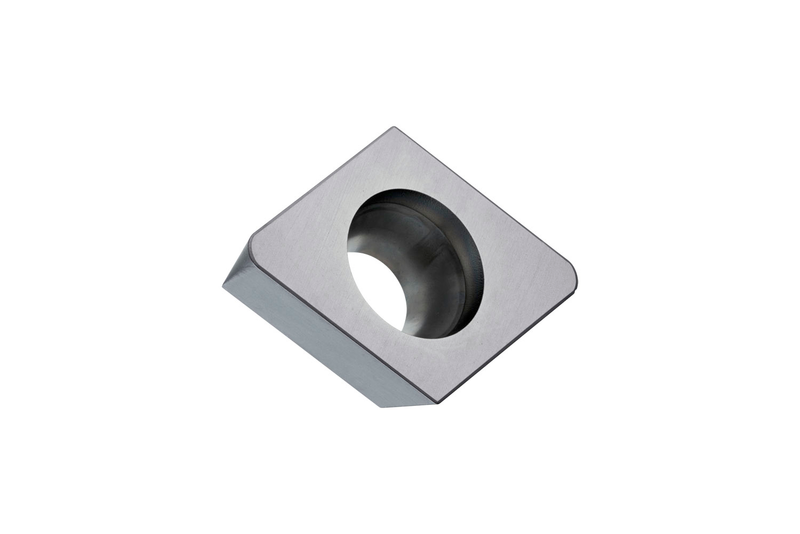

Plaquette de fraisage simple face XDHW 10T3 avec une surface de coupe plane, rhomboïde à 70° pour une profondeur de coupe maximale de 1 mm, avec un rayon de coin de 1 mm, une précision de positionnement selon la classe de tolérance ISO-H avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO K01-K10 et H05-H15 pour l'usinage de la fonte et des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XDHW 10T310SN:M8310
GradeM8310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756269
Product FamilyXDHW

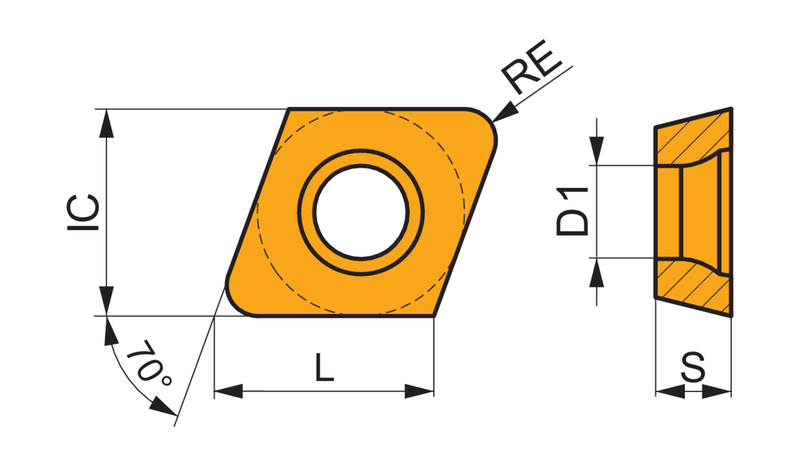

Insert Geometry
Insert DesignXDHW
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.394"
Inscribed Circle Dia. — mm (IC)10.0 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6756269
EAN3603602916358
File Type Download
XDHW 10T310SN:M8310 — Line Drawing PDF Download
