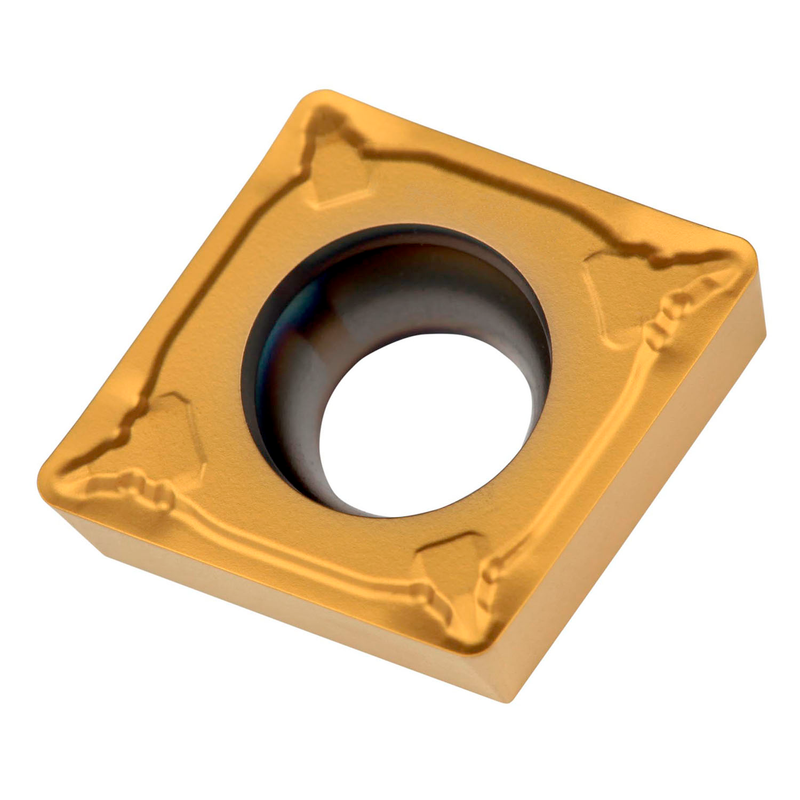

CCMT 21.50.5-UR:TT310
CCMT 21.50.5-UR:TT310

CCMT 21.50.5-UR:TT310

UGC DOR6756274
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", 3/32" d'épaisseur, rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR, en nuance TT310, un cermet revêtu PVD dans la plage ISO P10-P25, pour l'usinage de finition à l'usinage lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-UR:TT310
Product Name (ISO)CCMT 060202E-UR:TT310
GradeTT310
Chipbreaker (CBMD)VOUS
Product Number6756274
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756274
EAN3603602916402
File Type Download
CCMT 21.50.5-UR:TT310 — Line Drawing PDF Download
