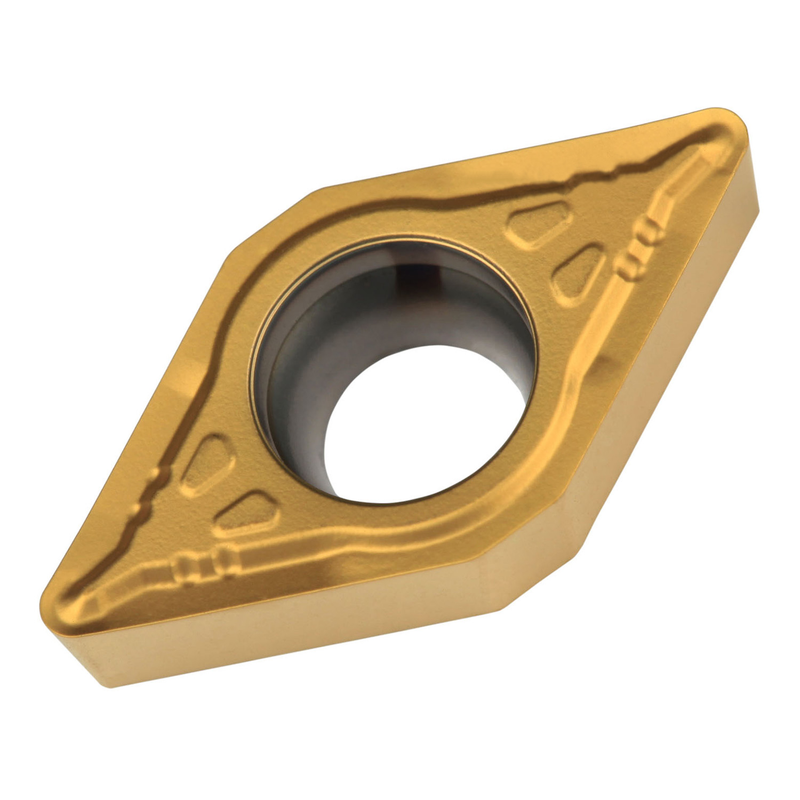

DCMT 32.52-UR:TT310
DCMT 32.52-UR:TT310

DCMT 32.52-UR:TT310

UGC DOR6756276
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.54 CAD - $15.54 CAD
$15.54 CAD
$15.54 CAD - $15.54 CAD
$15.54 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance TT310, un cermet revêtu PVD dans la plage ISO P10-P25, pour l'usinage de finition à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.52-UR:TT310
Product Name (ISO)DCMT 11T308E-UR:TT310
GradeTT310
Chipbreaker (CBMD)VOUS
Product Number6756276
Product FamilyDCMT
Insert Geometry
Insert DesignGTDC
Insert Shape Code (SC)D - angle fermé rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6756276
EAN3603602916426
File Type Download
DCMT 32.52-UR:TT310 — Line Drawing PDF Download
