RDHX 0501MOE:M8310
RDHX 0501MOE:M8310

RDHX 0501MOE:M8310

UGC DOR6756281
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.40 CAD - $14.40 CAD
$14.40 CAD
$14.40 CAD - $14.40 CAD
$14.40 CAD

Vendu en lots de : 10

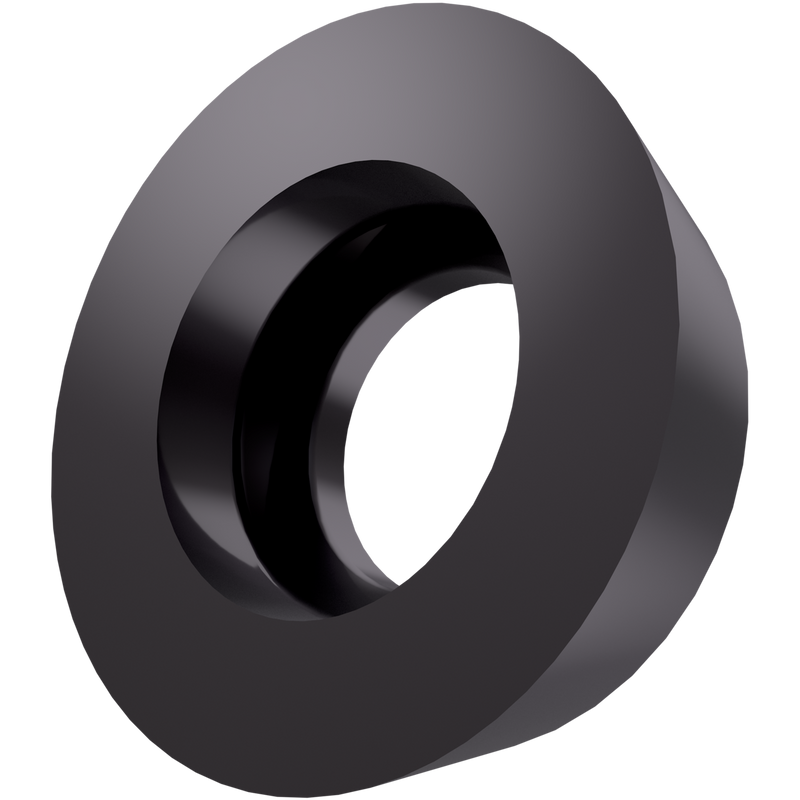

Plaquette de fraisage simple face RDHX 0501, ronde pour une profondeur de coupe maximale de 1,5 mm, avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-H avec arêtes de coupe arrondies, M8310 WC-Co carbure à grain fin revêtu PVD dans les plages de nuances ISO K01-K10 et H05-H15 pour l'usinage de la fonte et des matériaux trempés avec les fraises à copier SRD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 0501MOE:M8310
GradeM8310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756281
Product FamilyRDHX 05
Insert Geometry
Insert DesignRDHX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.059"
Insert Thickness — mm (S)1.51 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number6756281
EAN3603602916471
File Type Download

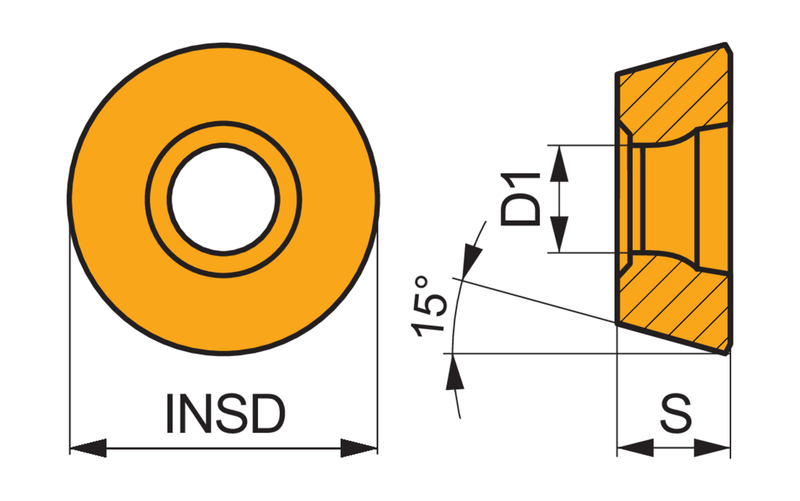

RDHX 0501MOE:M8310 — Line Drawing PDF Download
