RDHX 2006MOT:M8310
RDHX 2006MOT:M8310

RDHX 2006MOT:M8310

UGC DOR6756284
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.61 CAD - $32.61 CAD
$32.61 CAD
$32.61 CAD - $32.61 CAD
$32.61 CAD

Vendu en lots de : 10

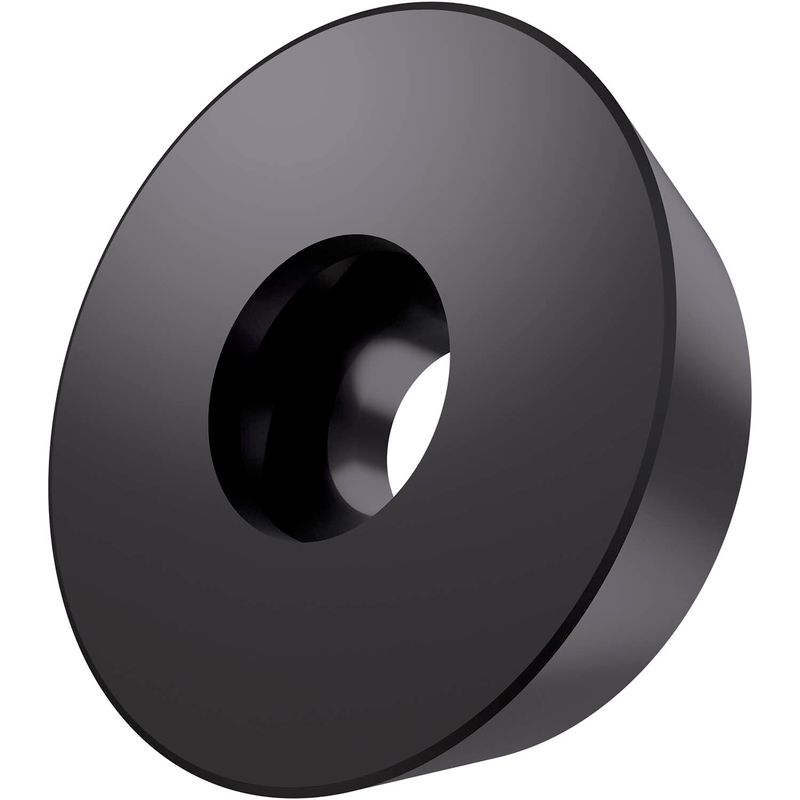

Plaquette de fraisage simple face RDHX 2006, ronde pour une profondeur de coupe maximale de 5 mm, avec un rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-H avec des arêtes de coupe à facettes, en carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO K01-K10 et H05-H15 pour l'usinage de la fonte et des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 2006MOT:M8310
GradeM8310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756284
Product FamilyRDHX 20
Insert Geometry
Insert DesignRDHX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6756284
EAN3603602916501
File Type Download

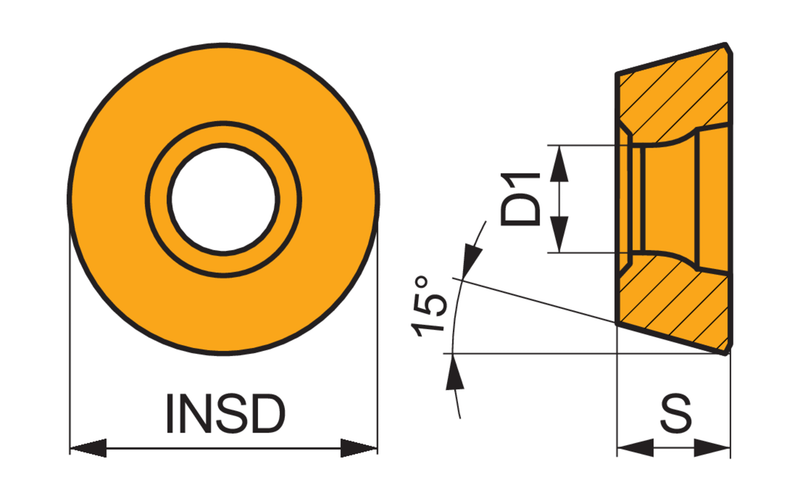

RDHX 2006MOT:M8310 — Line Drawing PDF Download
