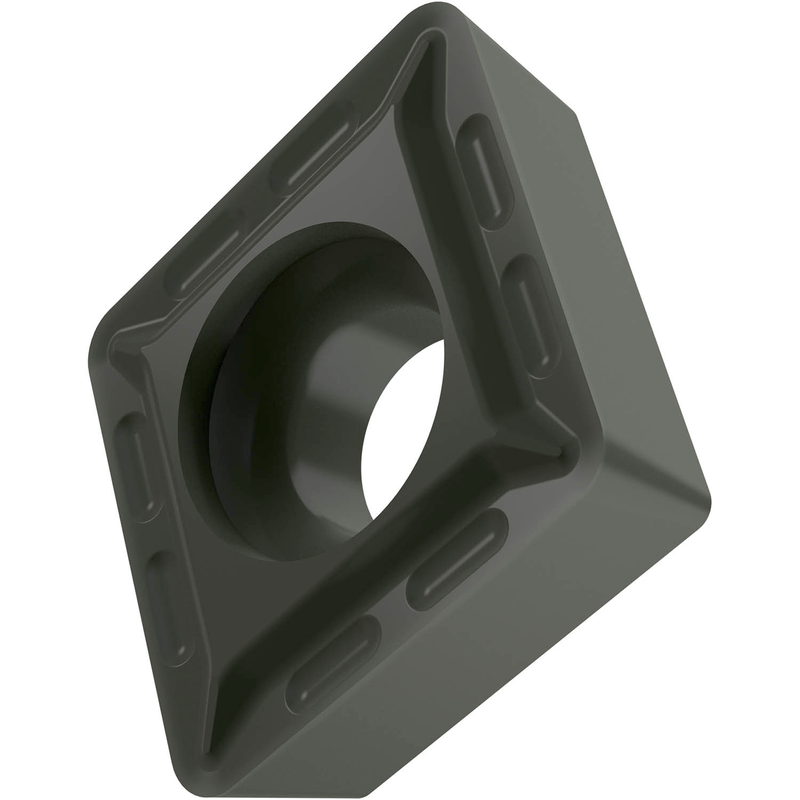

CCMT 2.521-FF2:TT010
CCMT 2.521-FF2:TT010

CCMT 2.521-FF2:TT010

UGC DOR6756301
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.97 CAD - $9.97 CAD
$9.97 CAD
$9.97 CAD - $9.97 CAD
$9.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF2, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.521-FF2:TT010
Product Name (ISO)CCMT 080304E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number6756301
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6756301
EAN3603602916679
File Type Download
CCMT 2.521-FF2:TT010 — Line Drawing PDF Download
