EPMT 1.81.50.5-NF2:TT010
EPMT 1.81.50.5-NF2:TT010

EPMT 1.81.50.5-NF2:TT010

UGC DOR6756302
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.50 CAD - $9.50 CAD
$9.50 CAD
$9.50 CAD - $9.50 CAD
$9.50 CAD

Vendu en lots de : 10

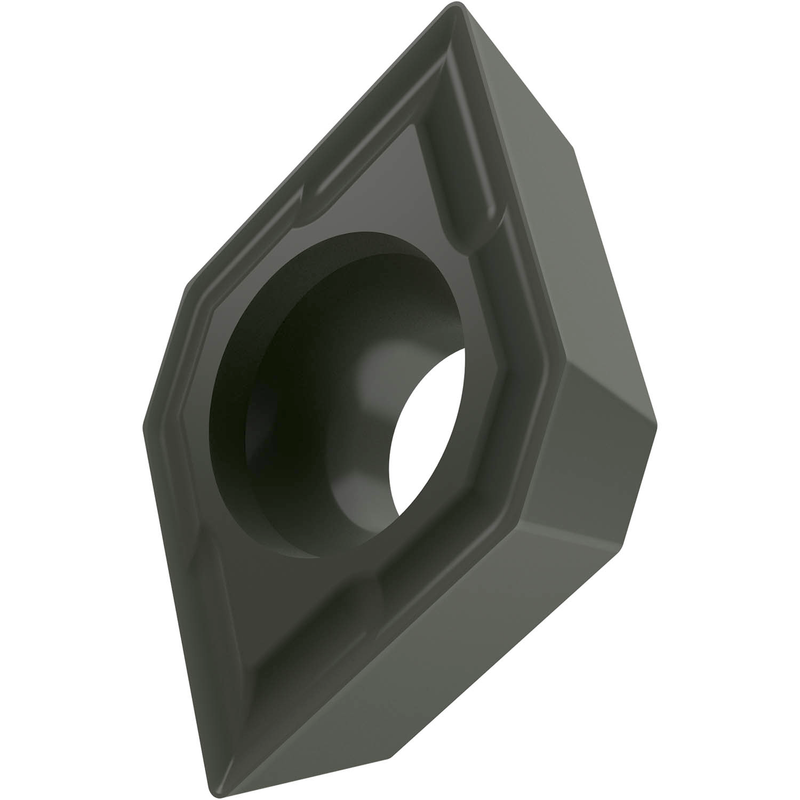

Plaquette de tournage positive simple face, rhomboïde à 75° avec dépouille de 11°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance TT010, un cermet non revêtu, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)EPMT 1.81.50.5-NF2:TT010
Product Name (ISO)EPMT 050202E-NF2:TT010
GradeTT010
Chipbreaker (CBMD)NF2
Product Number6756302
Product FamilyGEPMT

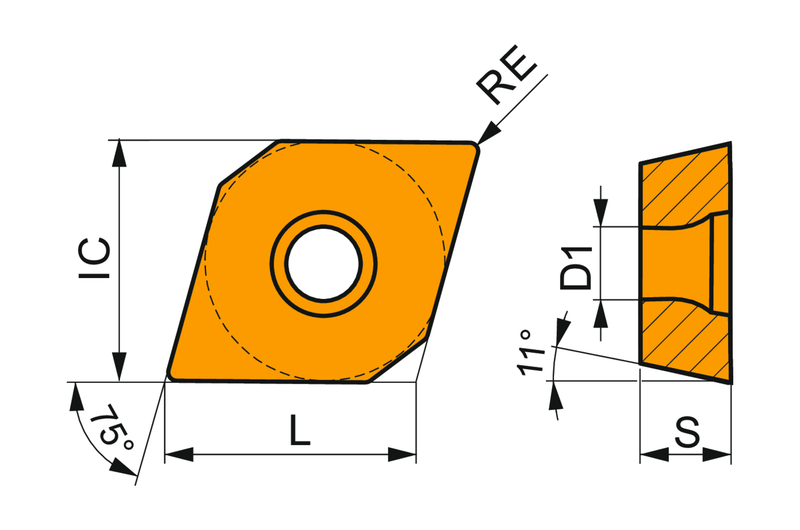

Insert Geometry
Insert DesignGEPM
Insert Shape Code (SC)F - rhombe angle intérieur 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6756302
EAN3603602916686
File Type Download
EPMT 1.81.50.5-NF2:TT010 — Line Drawing PDF Download
