VCGT 2.520.5-NF2:TT010
VCGT 2.520.5-NF2:TT010

VCGT 2.520.5-NF2:TT010

UGC DOR6756304
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.61 CAD - $19.61 CAD
$19.61 CAD
$19.61 CAD - $19.61 CAD
$19.61 CAD

Vendu en lots de : 10

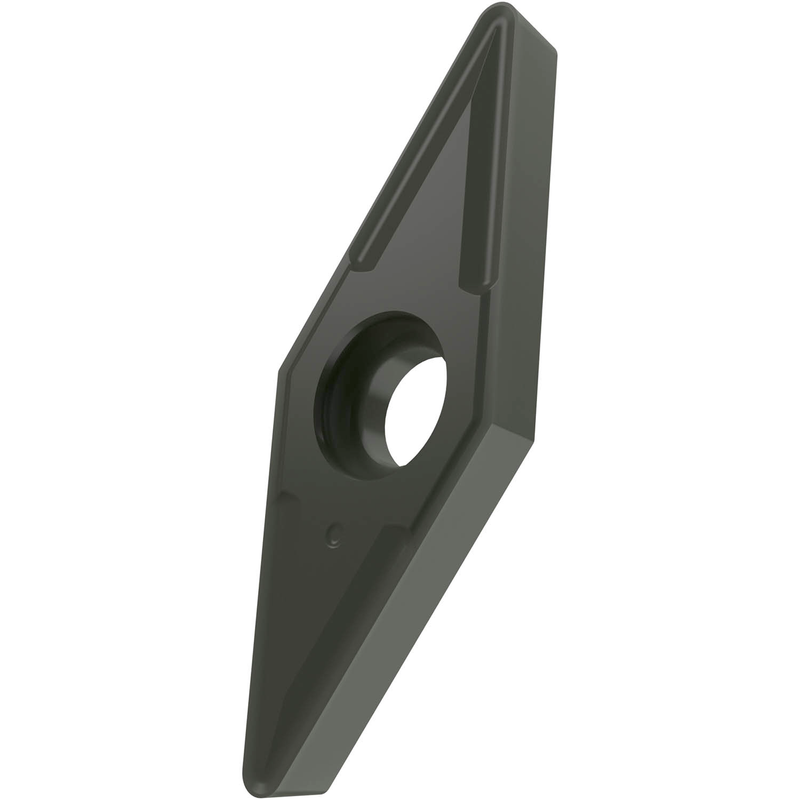

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux NF2, en nuance TT010, un cermet non revêtu, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.5-NF2:TT010
Product Name (ISO)VCGT 130302E-NF2:TT010
GradeTT010
Chipbreaker (CBMD)NF2
Product Number6756304
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle interne rhomboïdal 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756304
EAN3603602916709
File Type Download
VCGT 2.520.5-NF2:TT010 — Line Drawing PDF Download
