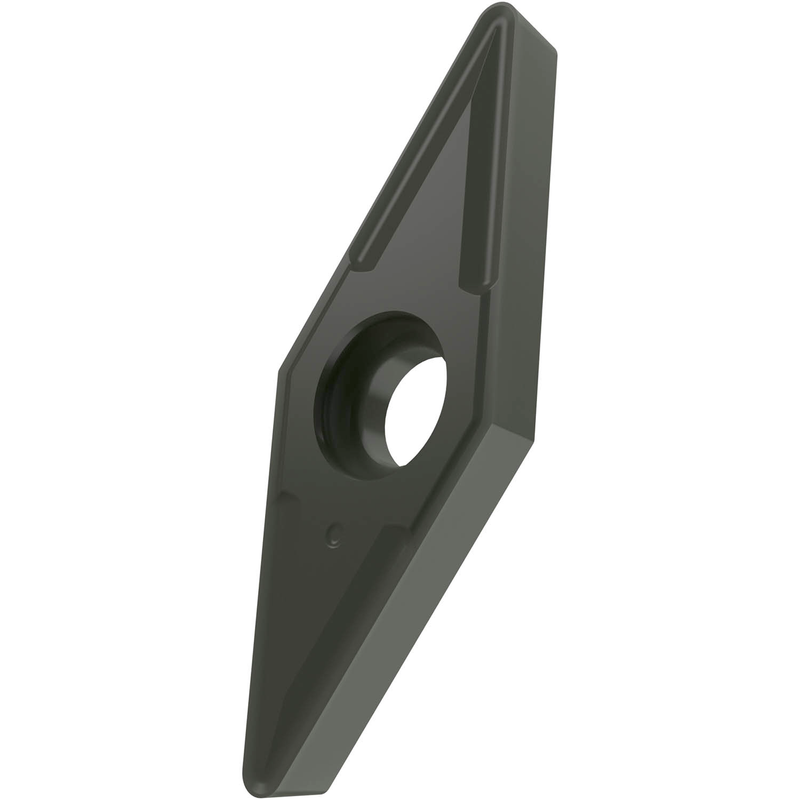

VCGT 2.521-NF2:TT010
VCGT 2.521-NF2:TT010

VCGT 2.521-NF2:TT010

UGC DOR6756306
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.43 CAD - $18.43 CAD
$18.43 CAD
$18.43 CAD - $18.43 CAD
$18.43 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur 1/8", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux NF2, en nuance TT010, un cermet non revêtu, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-NF2:TT010
Product Name (ISO)VCGT 130304E-NF2:TT010
GradeTT010
Chipbreaker (CBMD)NF2
Product Number6756306
Product FamilyTVGC
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle au sommet 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756306
EAN3603602916723
File Type Download
VCGT 2.521-NF2:TT010 — Line Drawing PDF Download
