VCGT 2.522-FF2:TT010
VCGT 2.522-FF2:TT010

VCGT 2.522-FF2:TT010

UGC DOR6756307
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.43 CAD - $18.43 CAD
$18.43 CAD
$18.43 CAD - $18.43 CAD
$18.43 CAD

Vendu en lots de : 10

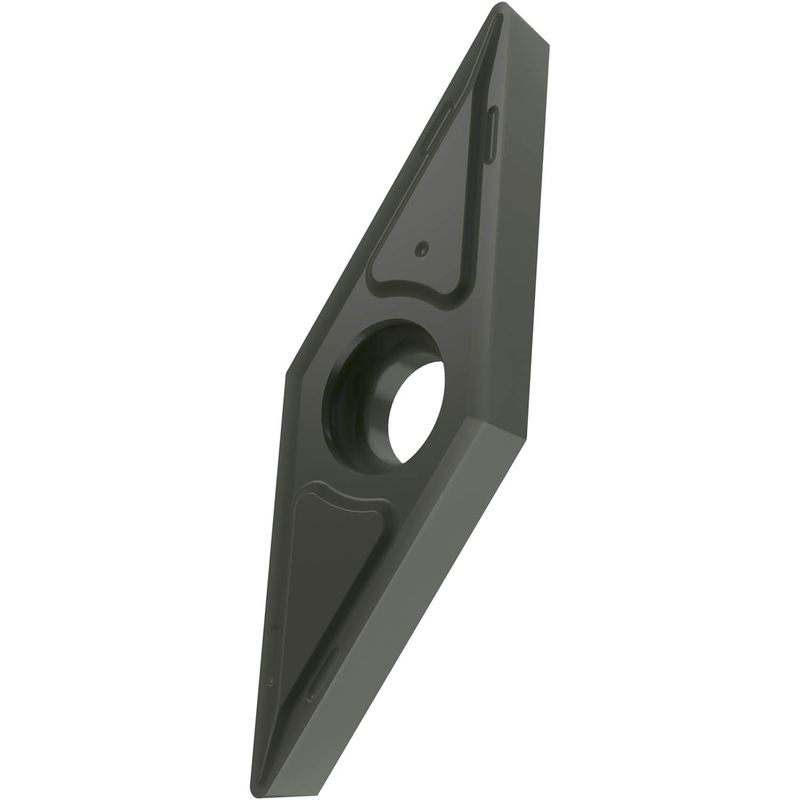

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-FF2:TT010
Product Name (ISO)VCGT 130308E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number6756307
Product FamilyVCGT
Insert Geometry
Insert DesignCVGT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756307
EAN3603602916730
File Type Download
VCGT 2.522-FF2:TT010 — Line Drawing PDF Download
