VCGX 2.520FL-FF2:TT010
VCGX 2.520FL-FF2:TT010

VCGX 2.520FL-FF2:TT010

UGC DOR6756309
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.26 CAD - $24.26 CAD
$24.26 CAD
$24.26 CAD - $24.26 CAD
$24.26 CAD

Vendu en lots de : 10

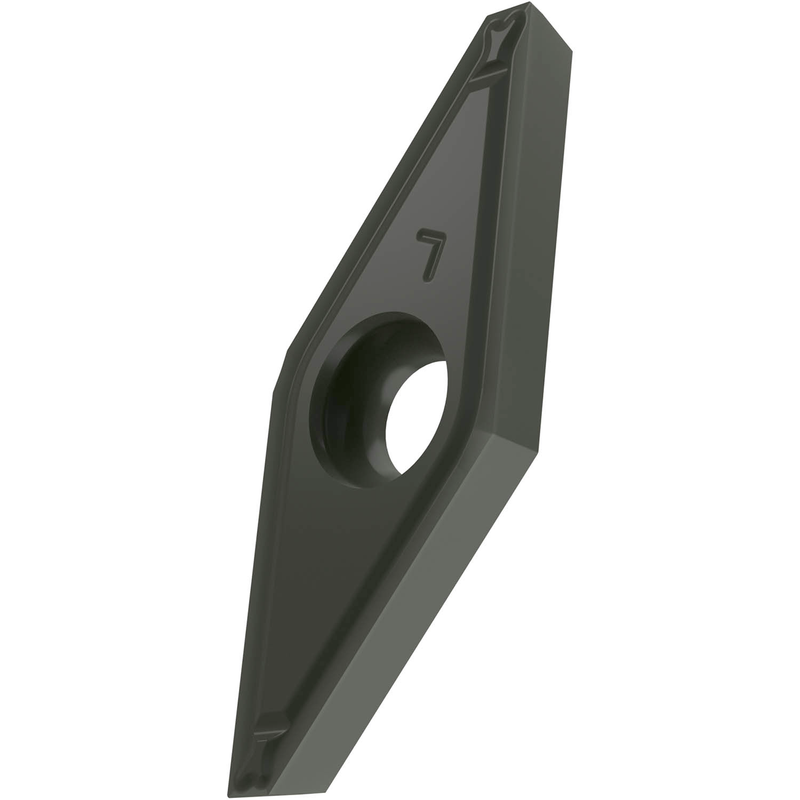

Plaquette de tournage positive de conception spéciale, rhomboïde à 35° avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 5/16", un rayon de bec de 1/8", une précision de positionnement selon la classe de tolérance ISO-G, un brise-copeaux FF2 à arêtes vives, en nuance TT010, un cermet non revêtu dans la gamme ISO P01-P10, pour l'usinage fin à moyen des aciers avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGX 2.520FL-FF2:TT010
Product Name (ISO)VCGX 130300FL-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number6756309
Product FamilyVCGX

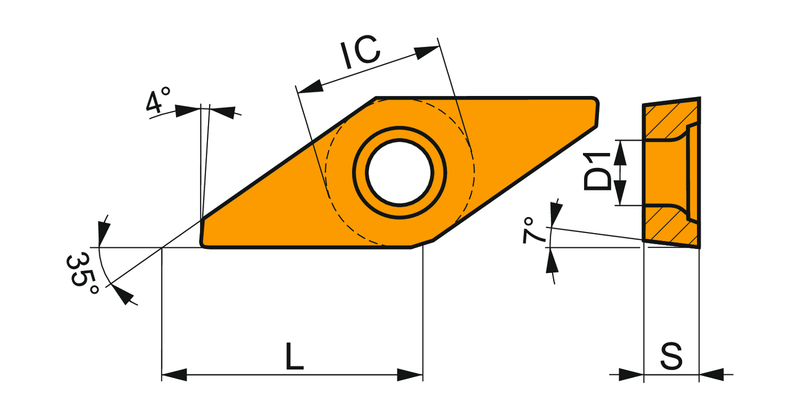

Insert Geometry
Insert DesignVCGX
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.0"
Corner Radius — mm (RE)0 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number6756309
EAN3603602916754
File Type Download
VCGX 2.520FL-FF2:TT010 — Line Drawing PDF Download
