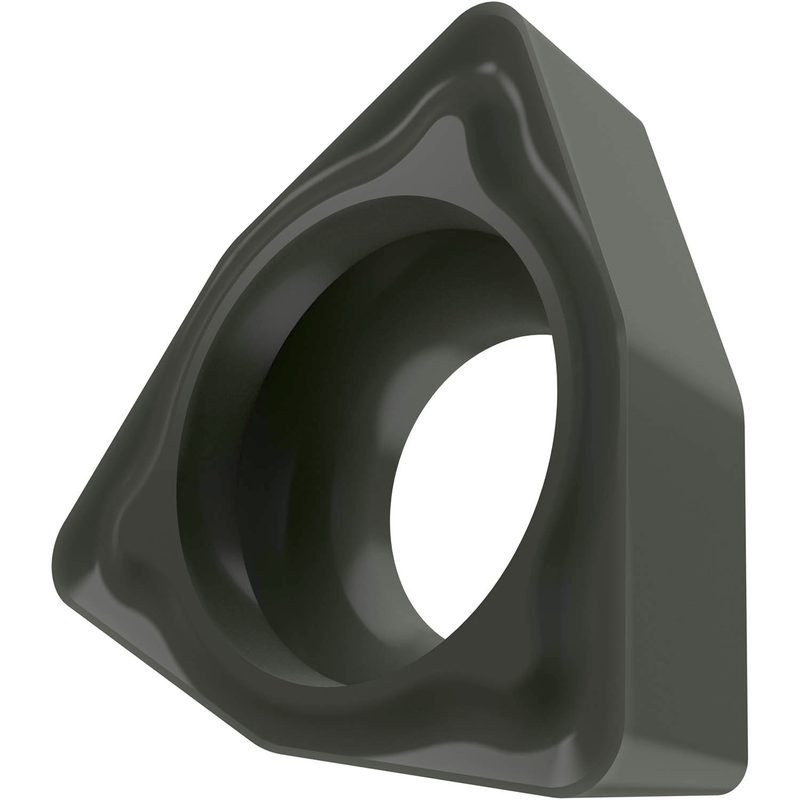

WCGT 1.210.5-FF2:TT010
WCGT 1.210.5-FF2:TT010

WCGT 1.210.5-FF2:TT010

UGC DOR6756312
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.57 CAD - $14.57 CAD
$14.57 CAD
$14.57 CAD - $14.57 CAD
$14.57 CAD

Vendu en lots de : 10

Plaquette positive simple face pour le tournage, trigon de 80° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 1/16", rayon de pointe de 1/128" et précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux FF2, en nuance TT010, un cermet non revêtu dans la plage ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 1.210.5-FF2:TT010
Product Name (ISO)WCGT 020102E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number6756312
Product FamilyCMGT
Insert Geometry
Insert DesignCGMT
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.063"
Insert Thickness — mm (S)1.59 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.055"
Depth of Cut Max — mm (APMX)1.4 mm
Tool Information
Reference Numbers
EDP Number6756312
EAN3603602916785
File Type Download
WCGT 1.210.5-FF2:TT010 — Line Drawing PDF Download
