WCGT 1.211-FF2:TT010
WCGT 1.211-FF2:TT010

WCGT 1.211-FF2:TT010

UGC DOR6756313
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.11 CAD - $14.11 CAD
$14.11 CAD
$14.11 CAD - $14.11 CAD
$14.11 CAD

Vendu en lots de : 10

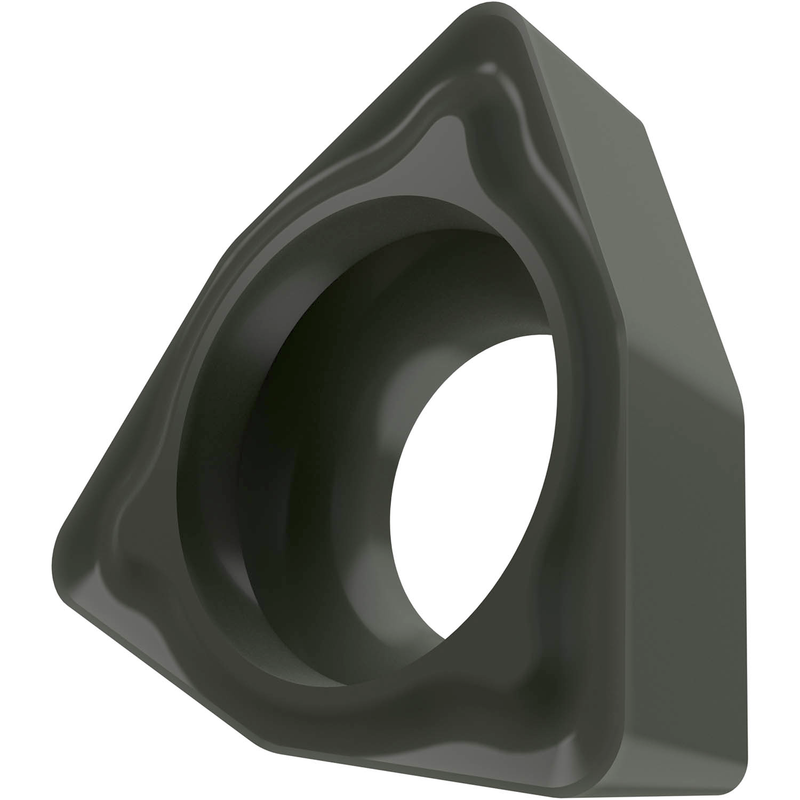

Plaquette de tournage positive simple face, trigon 80° avec dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 1/16", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance TT010, un cermet non revêtu de la gamme ISO P01-P10, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 1.211-FF2:TT010
Product Name (ISO)WCGT 020104E-FF2:TT010
GradeTT010
Chipbreaker (CBMD)FF2
Product Number6756313
Product FamilyWCGT
Insert Geometry
Insert DesignWCGT
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.063"
Insert Thickness — mm (S)1.59 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.055"
Depth of Cut Max — mm (APMX)1.4 mm
Tool Information
Reference Numbers
EDP Number6756313
EAN3603602916792
File Type Download
WCGT 1.211-FF2:TT010 — Line Drawing PDF Download
