XLCFN 250325-4.00
XLCFN 250325-4.00
XLCFN 250325-4.00

XLCFN 250325-4.00

UGC DOR6756323
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.00 CAD - $152.00 CAD
$152.00 CAD
$152.00 CAD - $152.00 CAD
$152.00 CAD

Vendu en lots de : 1

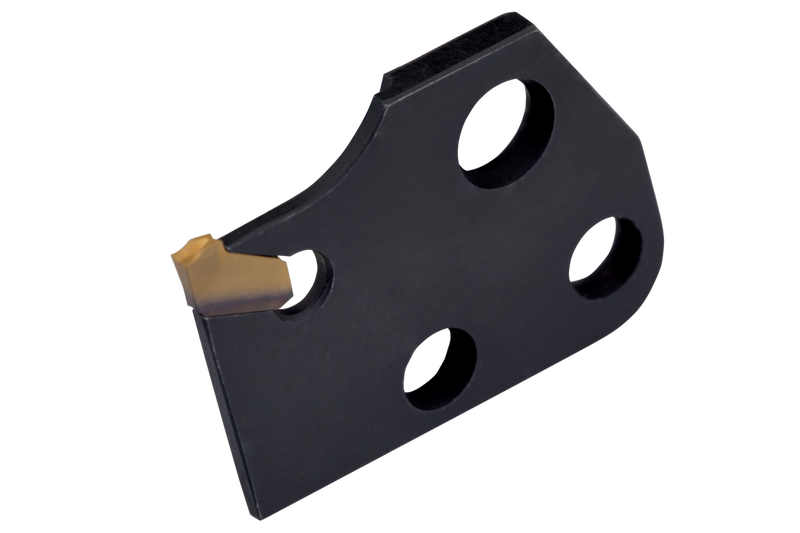

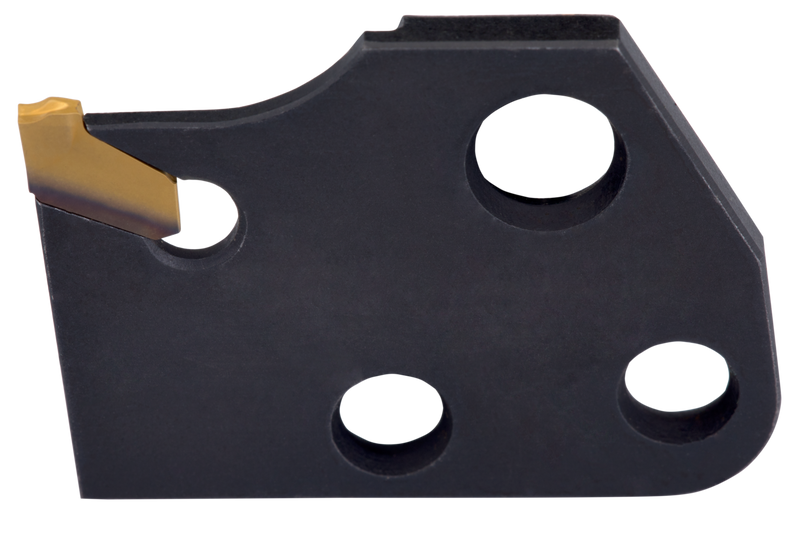

Lame d'outil à tronçonner et à rainurer pour insert simple face d'une largeur de coupe de 4 mm (désignation LFMX 4.1-. ), assemblage de type outil avec MS-EN.. (KMP)(S), côté droit ou gauche, insert parallèle à la queue pour une profondeur de rainurage maximale de 25 mm, pour le rainurage radial peu profond et profond, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XLCFN 250325-4.00
Product Number6756323
Product FamilyXLCF(NRL) BS
Insert Geometry
Depth of Cut Max — in (APMX)0.984"
Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)1.142 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756323
EAN3603602916891
File Type Download

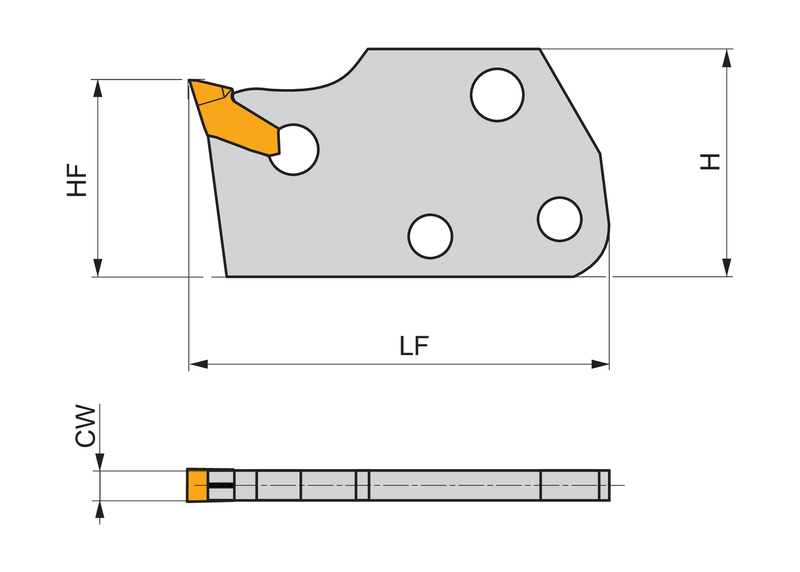

XLCFN 250325-4.00 — Line Drawing PDF Download
