XLCFN 250215-3.00
XLCFN 250215-3.00
XLCFN 250215-3.00

XLCFN 250215-3.00

UGC DOR6756566
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$148.00 CAD - $148.00 CAD
$148.00 CAD
$148.00 CAD - $148.00 CAD
$148.00 CAD

Vendu en lots de : 1

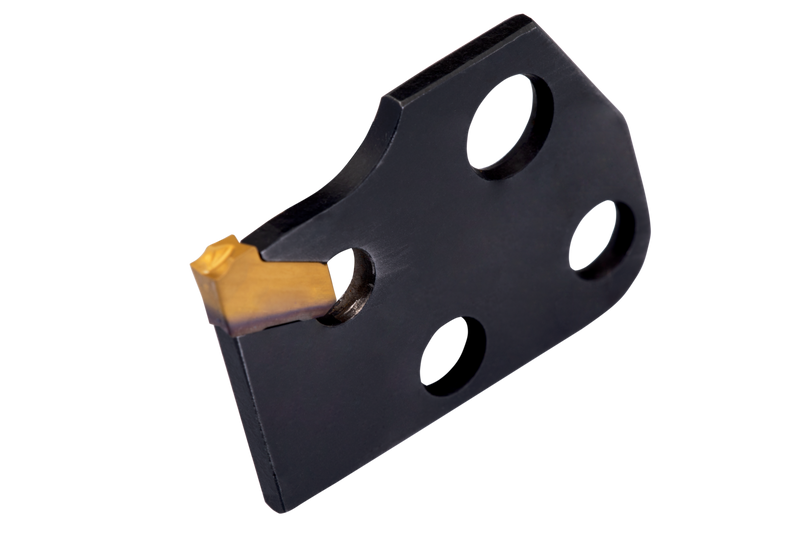

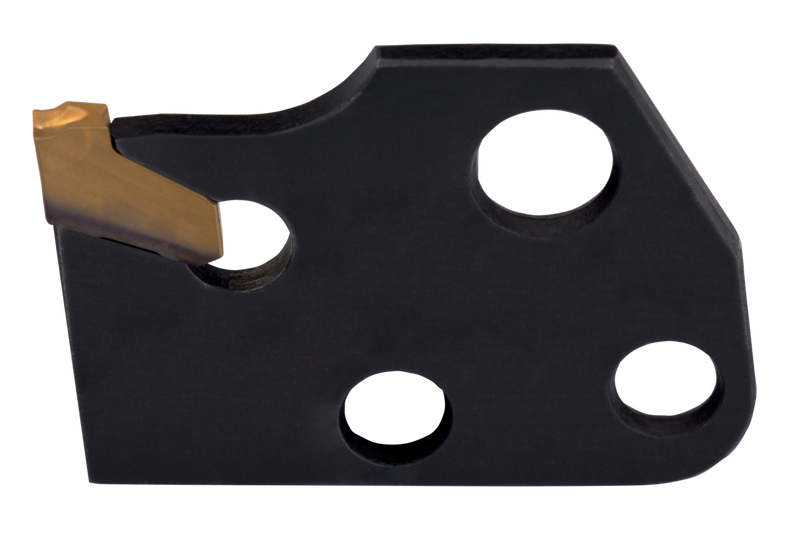

Lame d'outil à tronçonner et à gorge à serrage rapide pour plaquette unilatérale avec largeur de coupe de 3 mm (désignation LFMX 3.1-. ), assemblage de l'outil avec MS-EN.. (KMP)(S), côté droit ou gauche, plaquette parallèle à la tige pour une profondeur de gorge maximale de 15 mm, pour gorges radiales peu profondes et profondes, tronçonnage et tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XLCFN 250215-3.00
Product Number6756566
Product FamilyXLCF(NRL) BS
Insert Geometry
Depth of Cut Max — in (APMX)0.591"

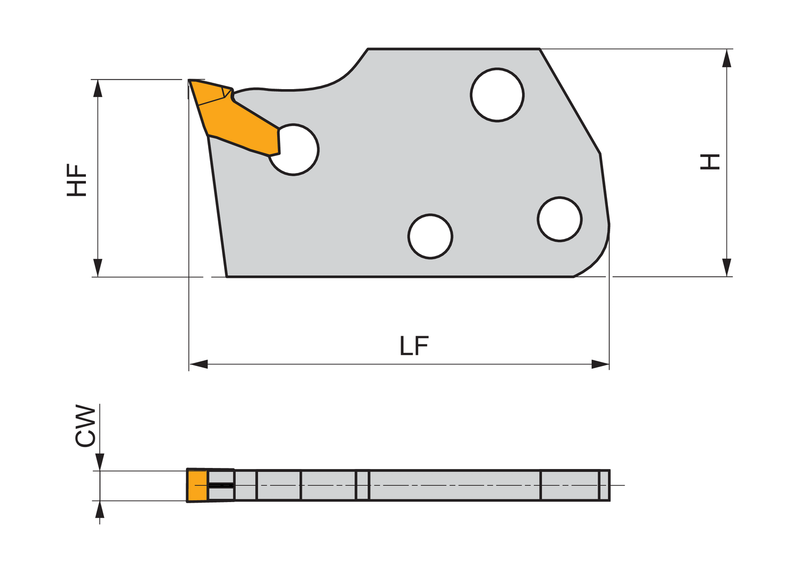

Dimensions
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Shank Height — mm (H)1.142 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756566
EAN3603602919328
File Type Download
XLCFN 250215-3.00 — Line Drawing PDF Download
