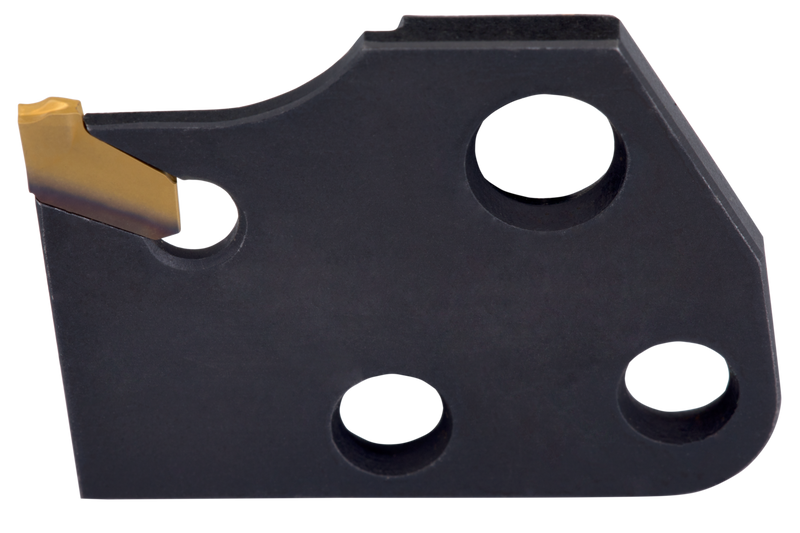

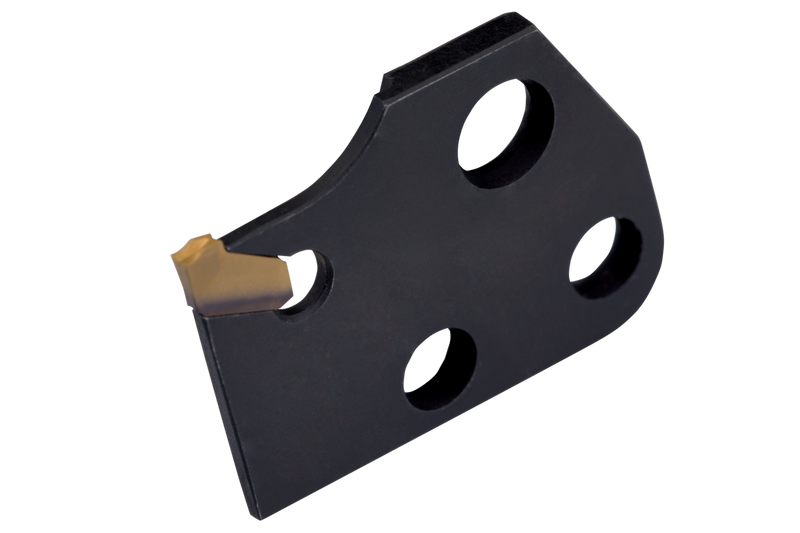

XLCFN 250315-4.00
XLCFN 250315-4.00
XLCFN 250315-4.00

XLCFN 250315-4.00

UGC DOR6756567
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.00 CAD - $152.00 CAD
$152.00 CAD
$152.00 CAD - $152.00 CAD
$152.00 CAD

Vendu en lots de : 1

Lame d'outil à tronçonner et à rainurer à bride à ressort pour maintenir un insert à une seule extrémité d'une largeur de coupe de 4 mm (désignation LFMX 4.1-. ), assemblage d'outil de type avec MS-EN.. (KMP)(S), côté droit ou gauche, insert parallèle à la queue pour une profondeur de rainurage maximale de 15 mm, pour le rainurage radial peu profond et profond, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XLCFN 250315-4.00
Product Number6756567
Product FamilyXLCF(NRL) BS
Insert Geometry
Depth of Cut Max — in (APMX)0.591"
Dimensions
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Shank Height — mm (H)1.142 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756567
EAN3603602919335
File Type Download

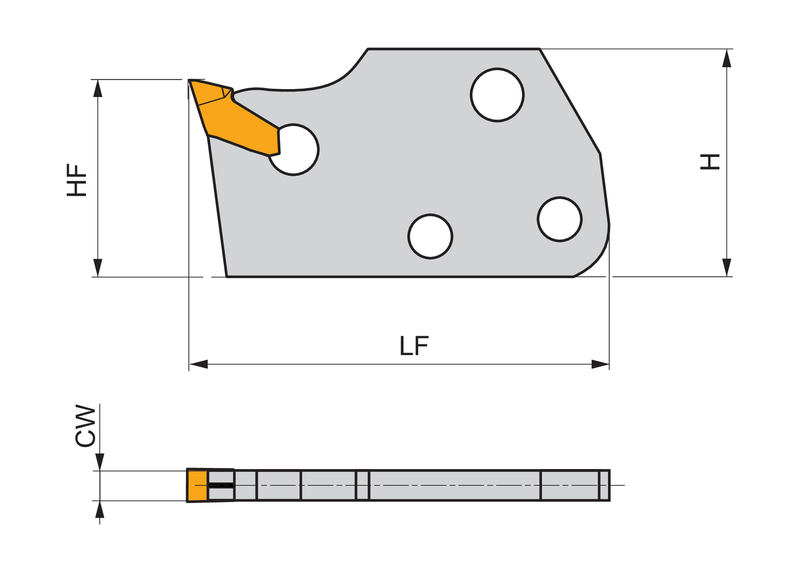

XLCFN 250315-4.00 — Line Drawing PDF Download
