SCBCR 2020 K 12-M-A
SCBCR 2020 K 12-M-A

SCBCR 2020 K 12-M-A

UGC DOR6756576
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.00 CAD - $168.00 CAD
$168.00 CAD
$168.00 CAD - $168.00 CAD
$168.00 CAD

Vendu en lots de : 1

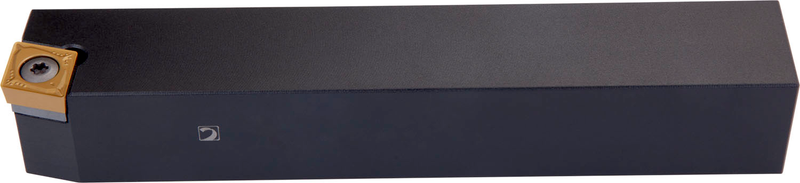

Porte-outil à levier de serrage pour plaquette positive rhomboïde à 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CC.. 1204.. ), coupe à droite à 75° avec queue cylindrique, hauteur d'outil de 20 mm x 20 mm de largeur x 125 mm de long pour le chariotage conique et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCBCR 2020 K 12-M-A
Product Number6756576
Product FamilyCSBC(RL) EXT

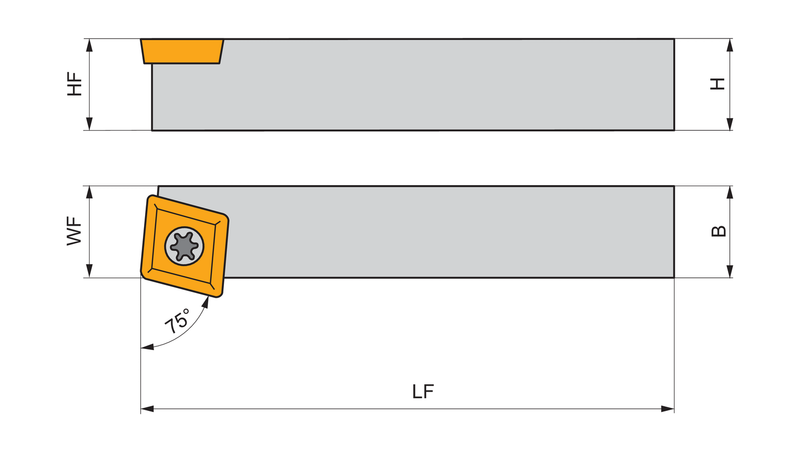

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756576
EAN3603602919427
File Type Download
SCBCR 2020 K 12-M-A — 3D Model STP Download
SCBCR 2020 K 12-M-A — Line Drawing PDF Download
