SDJCL 2020 K 11-M-A
SDJCL 2020 K 11-M-A
SDJCL 2020 K 11-M-A

SDJCL 2020 K 11-M-A

UGC DOR6756582
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.00 CAD - $168.00 CAD
$168.00 CAD
$168.00 CAD - $168.00 CAD
$168.00 CAD

Vendu en lots de : 1

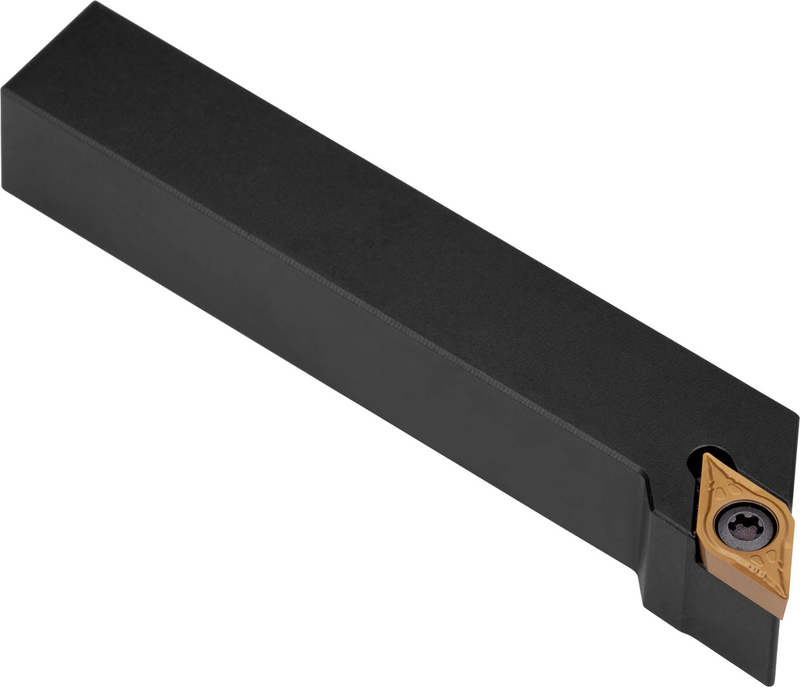

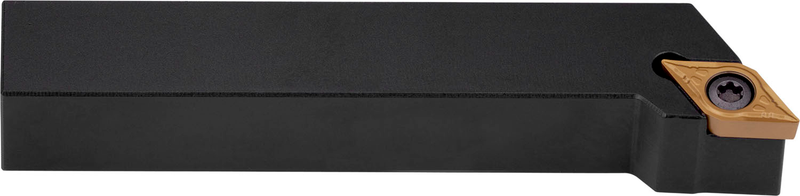

Outil de tournage à levier pour plaquettes positives rhomboïdes à 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm (désignation ISO DC.. 11T3.. ), coupe à gauche 93° avec corps déporté, hauteur d'outil 20 mm x largeur 20 mm x longueur 125 mm pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel, et le chariotage avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDJCL 2020 K 11-M-A
Product Number6756582
Product FamilySDJC(RL) EXT

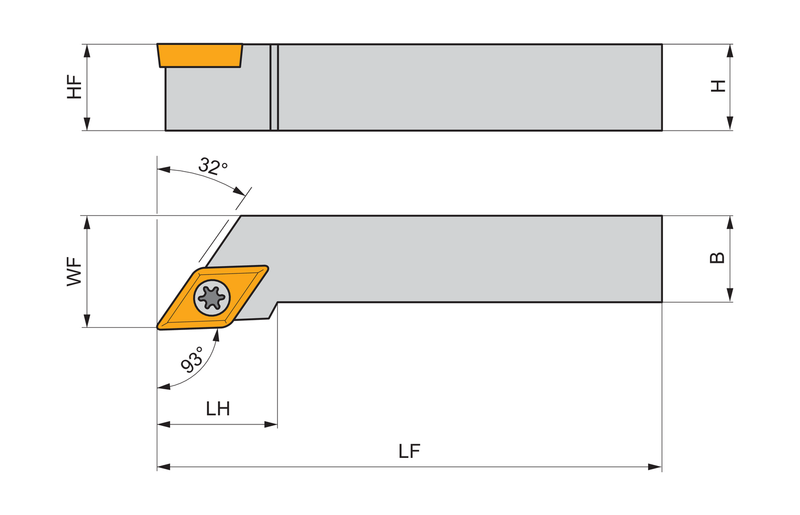

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756582
EAN3603602919489
File Type Download
SDJCL 2020 K 11-M-A — 3D Model STP Download
SDJCL 2020 K 11-M-A — Line Drawing PDF Download
