SDJCL 2525 M 11-M-A
SDJCL 2525 M 11-M-A
SDJCL 2525 M 11-M-A

SDJCL 2525 M 11-M-A

UGC DOR6756583
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

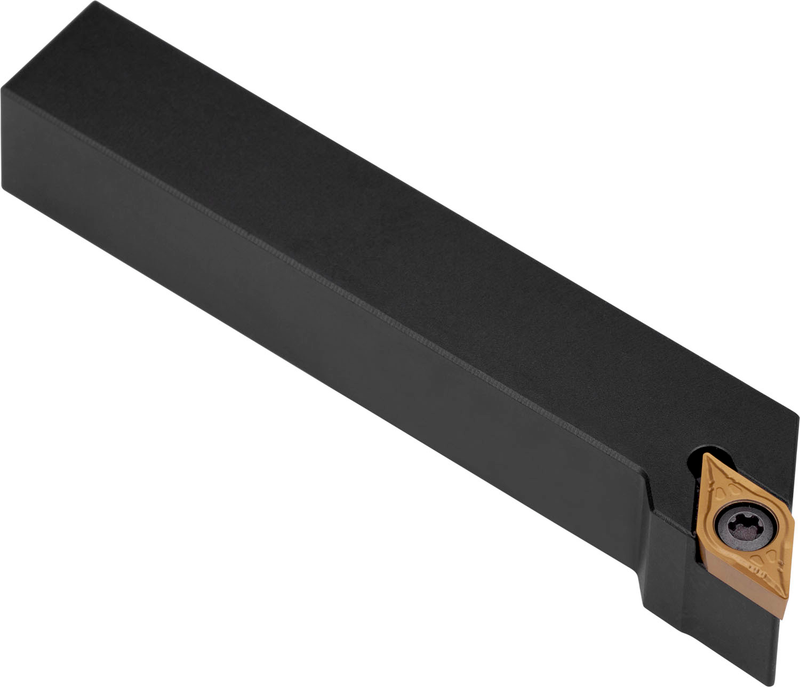

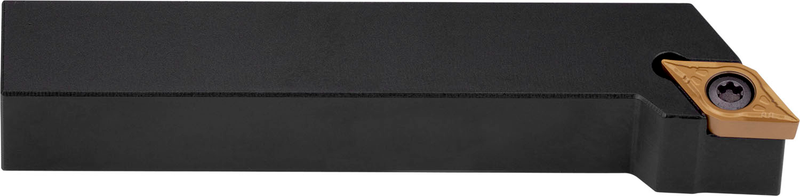

Outil de tournage à bride par vis pour plaquette positive en losange 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm (désignation ISO DC.. 11T3.. ), coupe à gauche 93° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDJCL 2525 M 11-M-A
Product Number6756583
Product FamilySDJC(RL) EXT

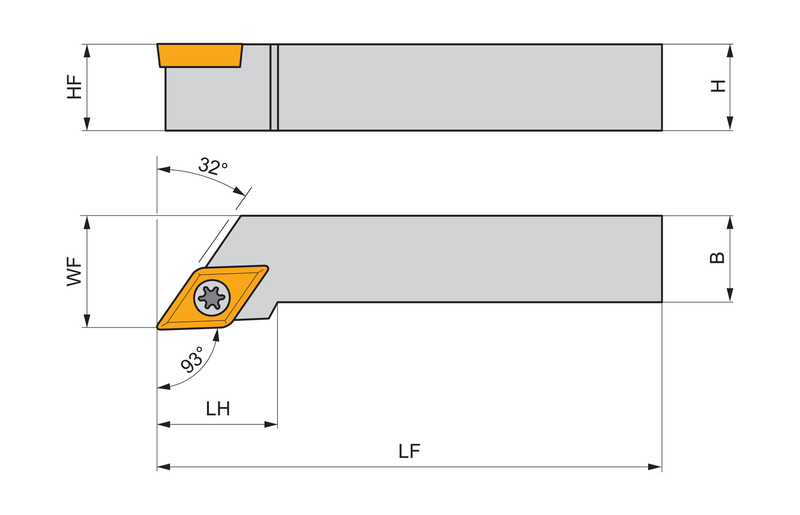

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756583
EAN3603602919496
File Type Download
SDJCL 2525 M 11-M-A — 3D Model STP Download
SDJCL 2525 M 11-M-A — Line Drawing PDF Download
