SDNCN 2020 K 11-M-A
SDNCN 2020 K 11-M-A
SDNCN 2020 K 11-M-A

SDNCN 2020 K 11-M-A

UGC DOR6756586
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.00 CAD - $168.00 CAD
$168.00 CAD
$168.00 CAD - $168.00 CAD
$168.00 CAD

Vendu en lots de : 1

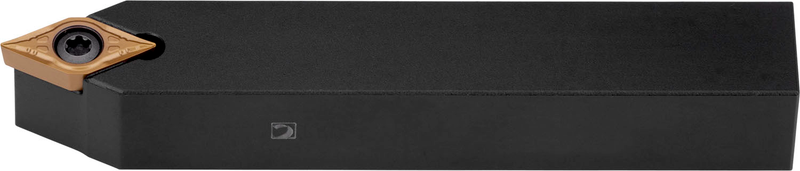

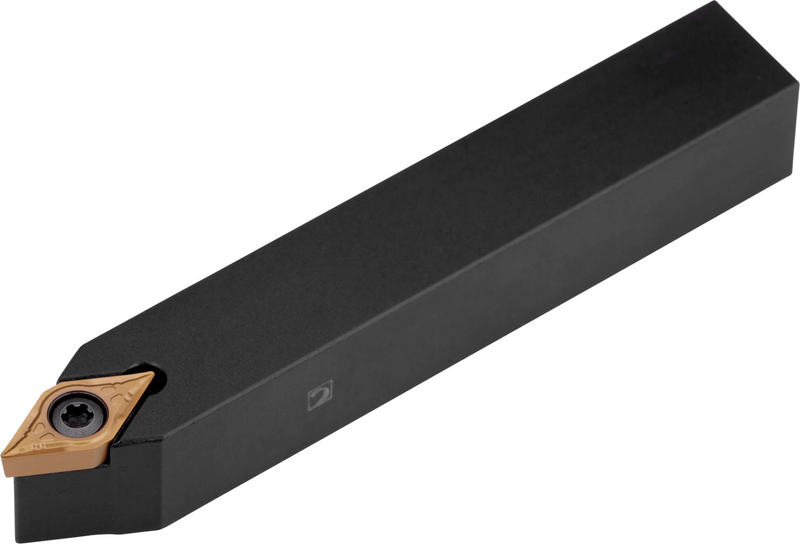

Outil de tournage à bride par vis pour plaquette positive en forme de losange à 55° avec un cercle inscrit de 9,525mm de diamètre, 3,97mm d'épaisseur (désignation ISO DC.. 11T3.. ), neutre à droite, angle de coupe de 62°30' avec queue droite, 20mm de hauteur d'outil x 20mm de largeur x 125mm de longueur pour le chanfreinage, le tournage conique, le tournage de copie unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDNCN 2020 K 11-M-A
Product Number6756586
Product FamilySDNCN EXT

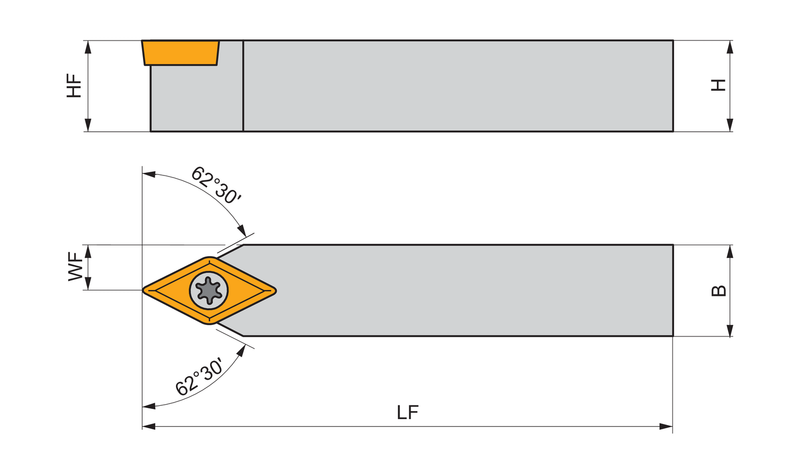

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756586
EAN3603602919526
File Type Download
SDNCN 2020 K 11-M-A — Line Drawing PDF Download
