SDNCN 2525 M 11-M-A
SDNCN 2525 M 11-M-A
SDNCN 2525 M 11-M-A

SDNCN 2525 M 11-M-A

UGC DOR6756587
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

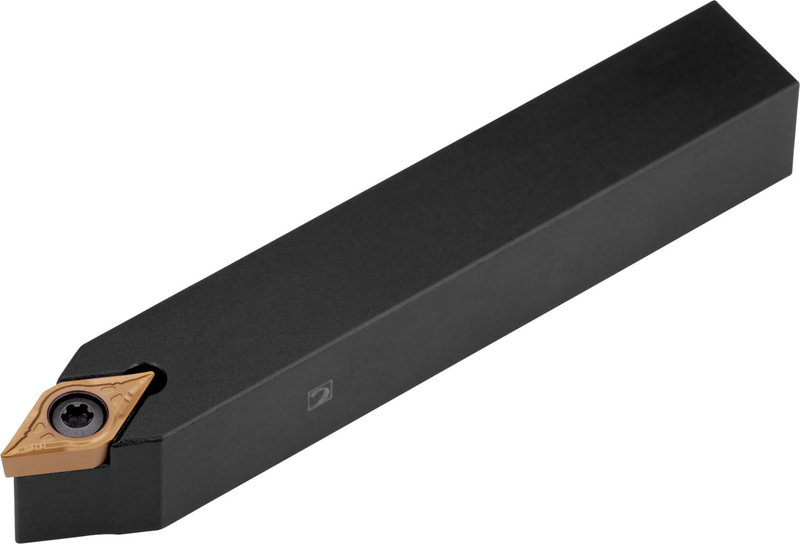

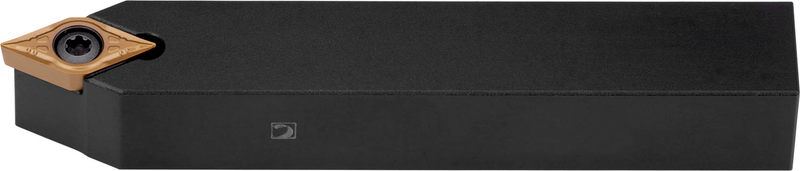

Outil de tournage à levier pour plaquette positive rhomboïde à 55° avec un diamètre de cercle inscrit de 9,525mm, 3,97mm d'épaisseur (désignation ISO DC.. 11T3.. ), orientation neutre, angle de coupe latéral de 62°30' avec queue droite, hauteur d'outil de 25mm x largeur de 25mm x longueur de 150mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDNCN 2525 M 11-M-A
Product Number6756587
Product FamilyEXT SDNCN

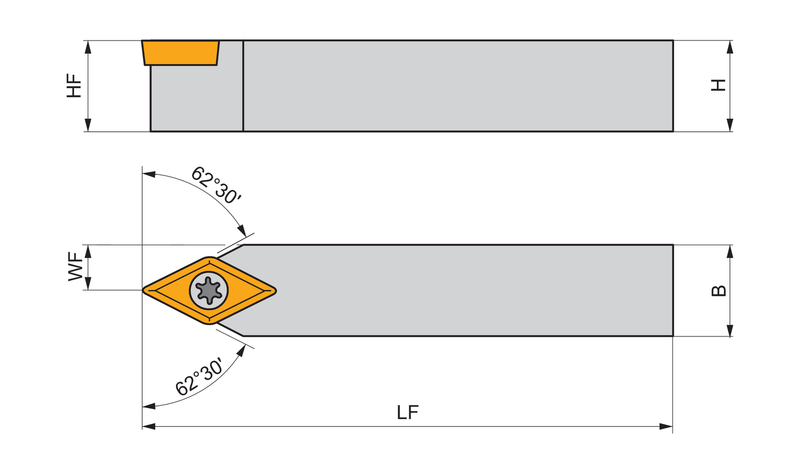

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756587
EAN3603602919533
File Type Download
SDNCN 2525 M 11-M-A — Line Drawing PDF Download
