SRDCN 2525 M 10-M-A
SRDCN 2525 M 10-M-A
SRDCN 2525 M 10-M-A

SRDCN 2525 M 10-M-A

UGC DOR6756589
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

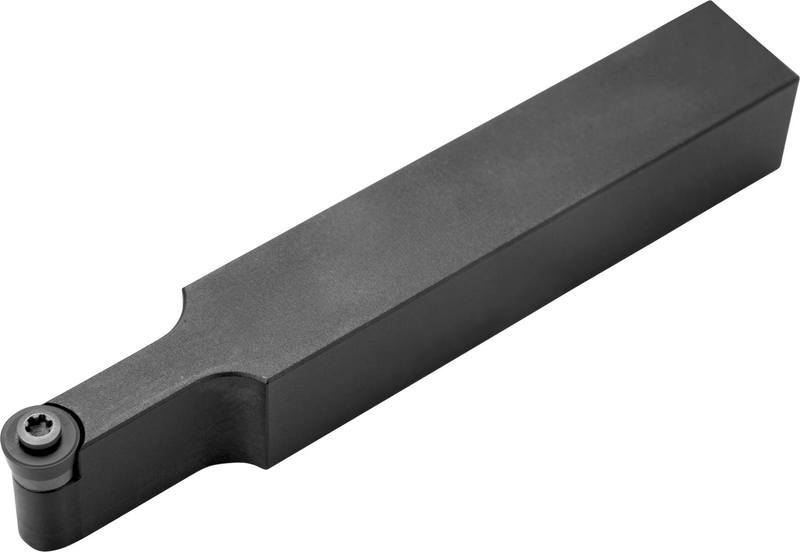

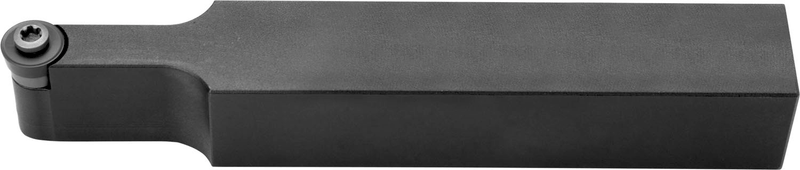

Outil de chariotage à levier pour plaquette ronde positive de 10mm de diamètre, 3,97mm d'épaisseur (désignation ISO RC.. 10T3MO), de coupe neutre et droite, avec une hauteur d'outil de 25mm, une largeur de 25mm et une longueur de 150mm pour le chariotage conique, le chariotage de contournage unidirectionnel et multidirectionnel et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRDCN 2525 M 10-M-A
Product Number6756589
Product FamilySRDCN EXT

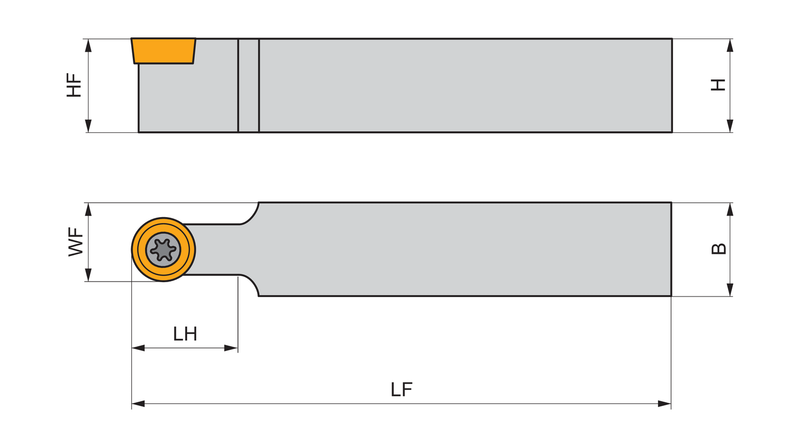

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756589
EAN3603602919557
File Type Download
SRDCN 2525 M 10-M-A — 3D Model STP Download
SRDCN 2525 M 10-M-A — Line Drawing PDF Download
