SRSCR 2525 M 10-M-A
SRSCR 2525 M 10-M-A
SRSCR 2525 M 10-M-A

SRSCR 2525 M 10-M-A

UGC DOR6756595
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

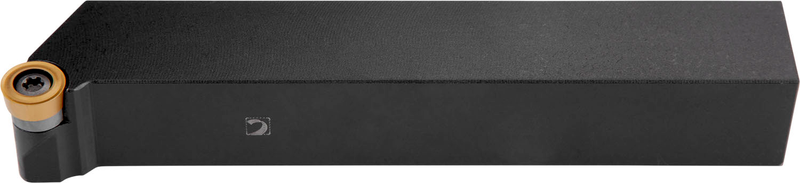

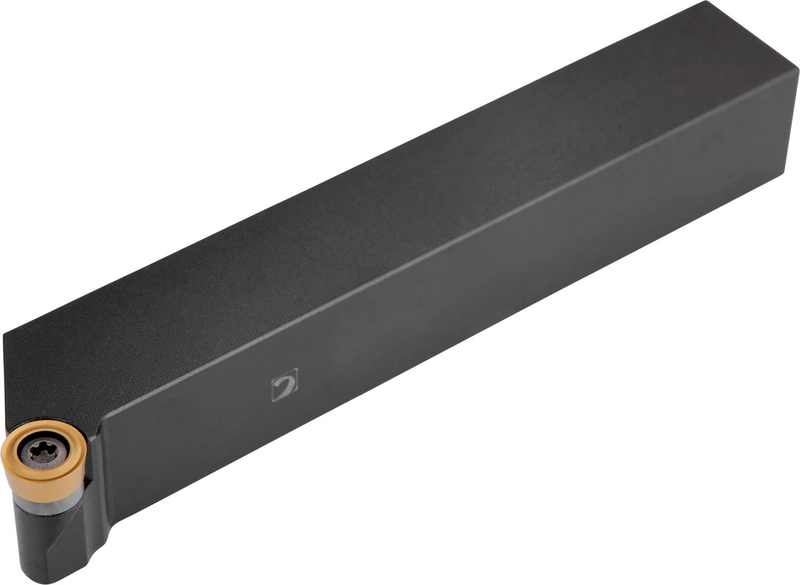

Outil de tournage à bride par vis pour le maintien d'un insert rond positif d'un diamètre de 10 mm et d'une épaisseur de 3,97 mm (désignation ISO RC.. 10T3MO ), coupe à droite avec queue déportée, hauteur de l'outil 25 mm x largeur 25 mm x longueur 150 mm pour le tournage conique, le tournage de reproduction multidirectionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRSCR 2525 M 10-M-A
Product Number6756595
Product FamilySRSC(RL) EXT

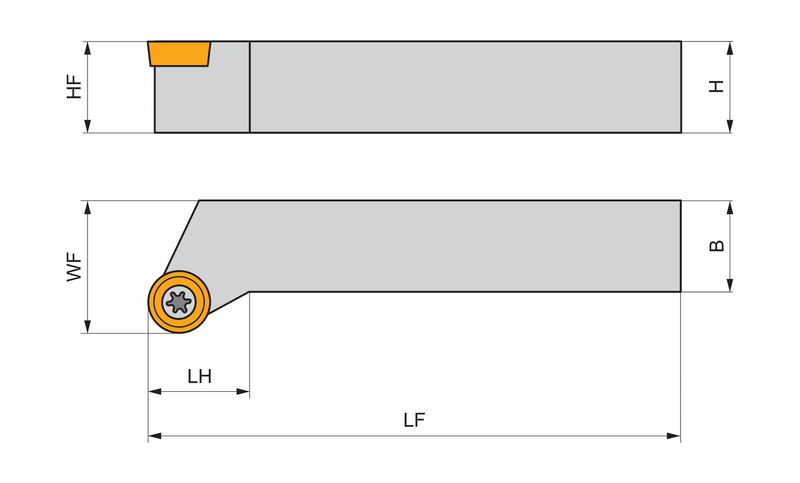

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756595
EAN3603602919618
File Type Download
SRSCR 2525 M 10-M-A — 3D Model STP Download
SRSCR 2525 M 10-M-A — Line Drawing PDF Download
