SRSCR 2525 M 12-M-A
SRSCR 2525 M 12-M-A
SRSCR 2525 M 12-M-A

SRSCR 2525 M 12-M-A

UGC DOR6756596
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

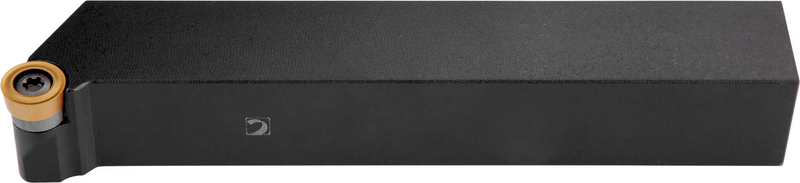

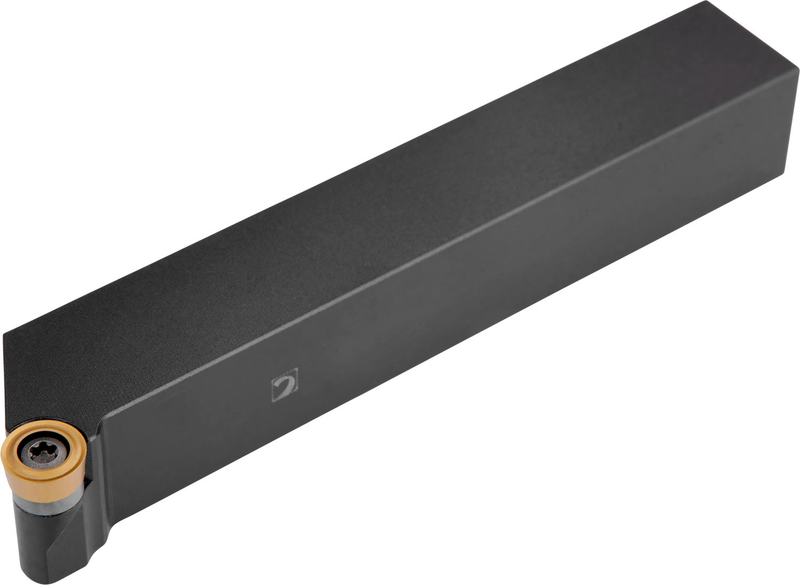

Outil de tournage à levier pour plaquette ronde positive de diamètre 12mm, 4,76mm d'épaisseur (désignation ISO RC.. 1204MO), coupe à droite avec queue déportée, hauteur d'outil 25mm x largeur 25mm x longueur 150mm pour le tournage conique, le tournage de copiage multidirectionnel, le tournage de face sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRSCR 2525 M 12-M-A
Product Number6756596
Product FamilySRSC(RL) EXT

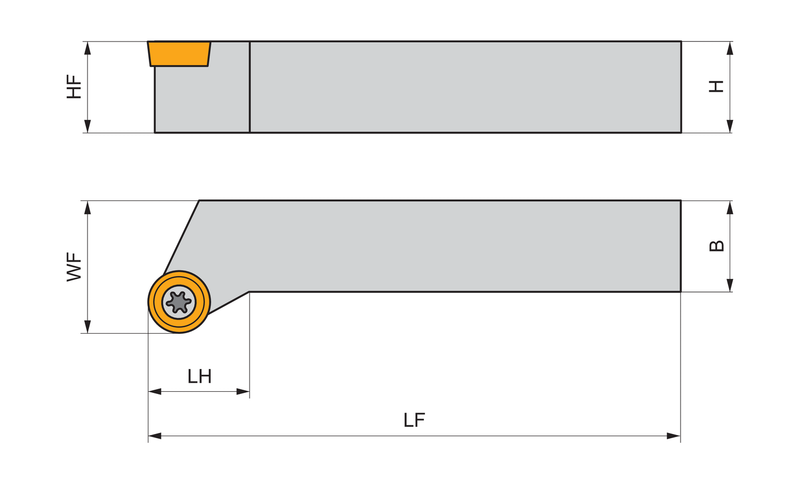

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756596
EAN3603602919625
File Type Download
SRSCR 2525 M 12-M-A — 3D Model STP Download
SRSCR 2525 M 12-M-A — Line Drawing PDF Download
