SSDCN 2020 K 12-M-A
SSDCN 2020 K 12-M-A
SSDCN 2020 K 12-M-A

SSDCN 2020 K 12-M-A

UGC DOR6756601
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.00 CAD - $168.00 CAD
$168.00 CAD
$168.00 CAD - $168.00 CAD
$168.00 CAD

Vendu en lots de : 1

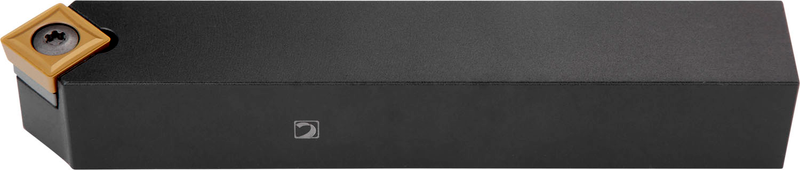

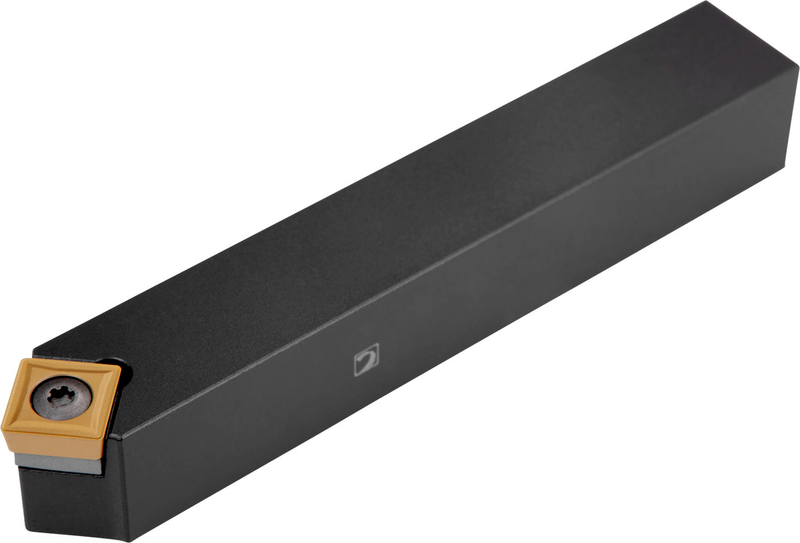

Outil de tournage à bride à vis pour le maintien d'un insert carré positif avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO SC.. 1204.. ), main neutre, coupe latérale à 45° avec queue droite, hauteur d'outil de 20 mm x largeur de 20 mm x 125 mm de long pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SSDCN 2020 K 12-M-A
Product Number6756601
Product FamilyEXT DU CSSD

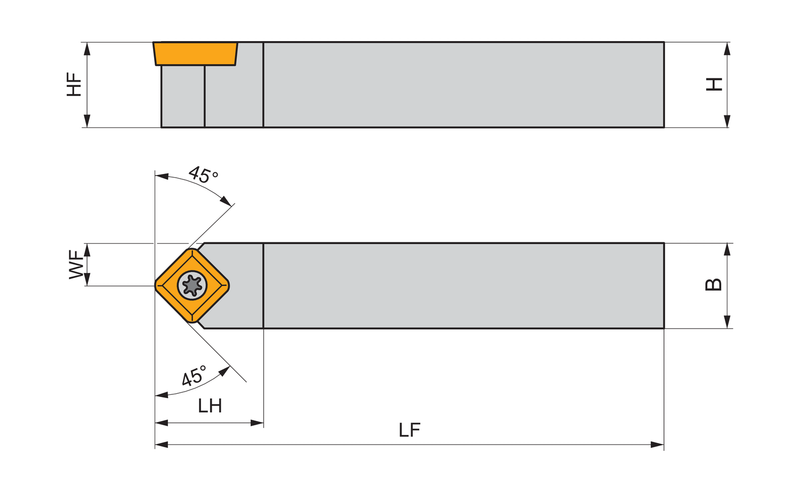

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756601
EAN3603602919670
File Type Download
SSDCN 2020 K 12-M-A — 3D Model STP Download
SSDCN 2020 K 12-M-A — Line Drawing PDF Download
