STJCL 2525 M 16-M-A
STJCL 2525 M 16-M-A
STJCL 2525 M 16-M-A

STJCL 2525 M 16-M-A

UGC DOR6756612
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

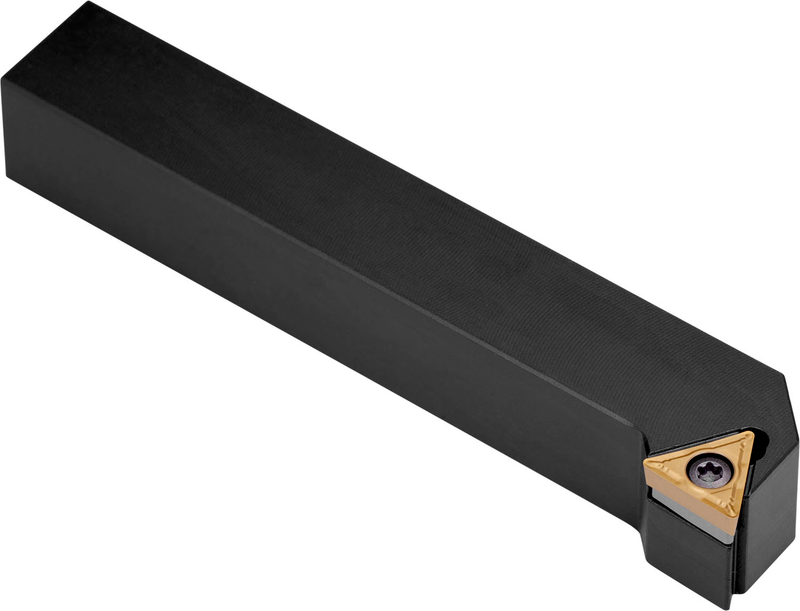

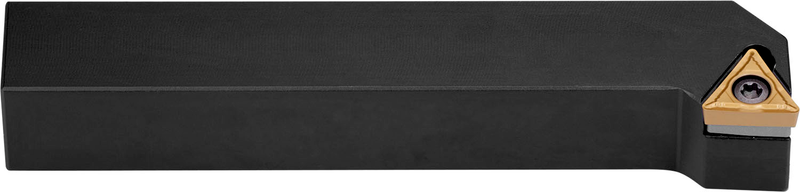

Outil de tournage à bride par vis pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 9,525 mm, 3,97 mm d'épaisseur (désignation ISO TC... 16T3...), coupe à gauche à 93° avec un corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chariotage conique et le chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)STJCL 2525 M 16-M-A
Product Number6756612
Product FamilySTJC(RL) EXT

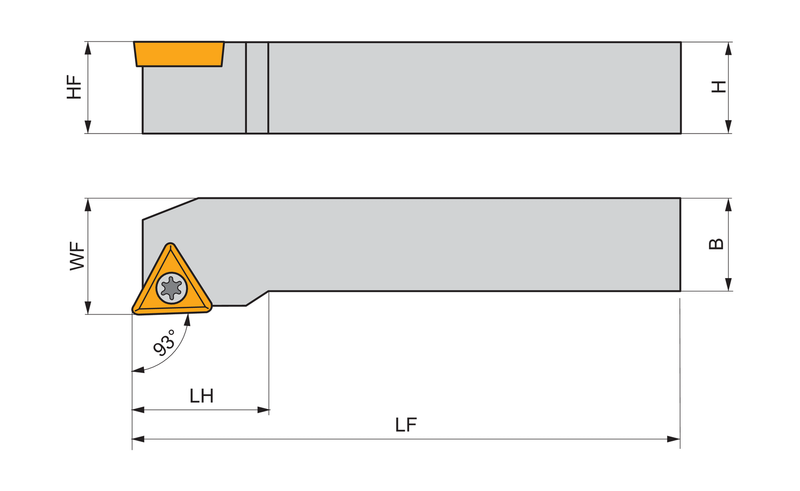

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756612
EAN3603602919786
File Type Download
STJCL 2525 M 16-M-A — 3D Model STP Download
STJCL 2525 M 16-M-A — Line Drawing PDF Download
