SVHCL 2020 K 16-M-A
SVHCL 2020 K 16-M-A
SVHCL 2020 K 16-M-A

SVHCL 2020 K 16-M-A

UGC DOR6756615
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

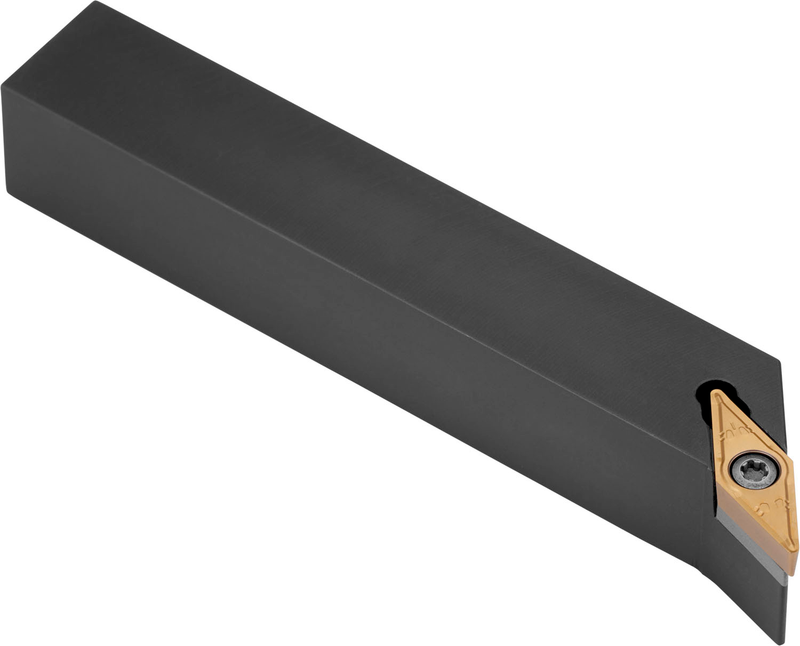

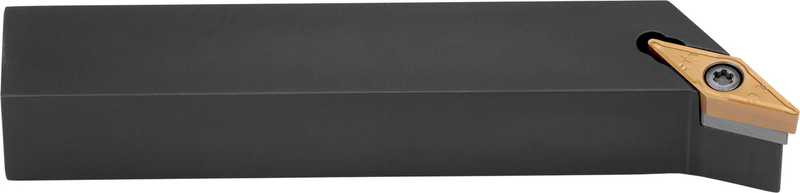

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VB.. 1604.. ou VC.. 1604..), à coupe latérale gauche à 107°30' avec queue déportée, hauteur d'outil de 20mm x 20mm de largeur x 125mm de long pour le tournage conique, le tournage de reproduction monodirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVHCL 2020 K 16-M-A
Product Number6756615
Product FamilySVHB(C)(RL) EXT

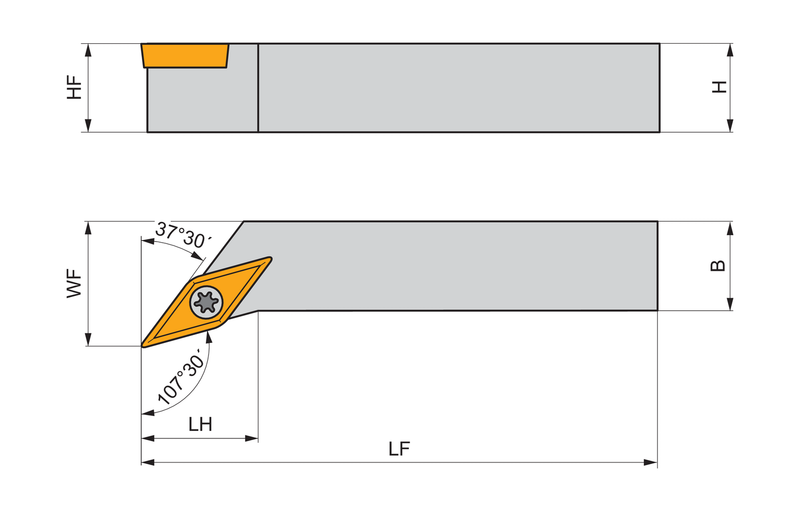

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756615
EAN3603602919816
File Type Download
SVHCL 2020 K 16-M-A — 3D Model STP Download
SVHCL 2020 K 16-M-A — Line Drawing PDF Download
