SVHCL 2525 M 16-M-A
SVHCL 2525 M 16-M-A
SVHCL 2525 M 16-M-A

SVHCL 2525 M 16-M-A

UGC DOR6756616
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

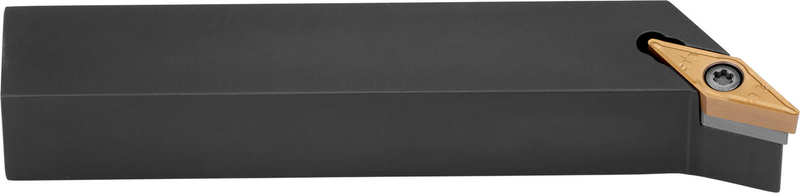

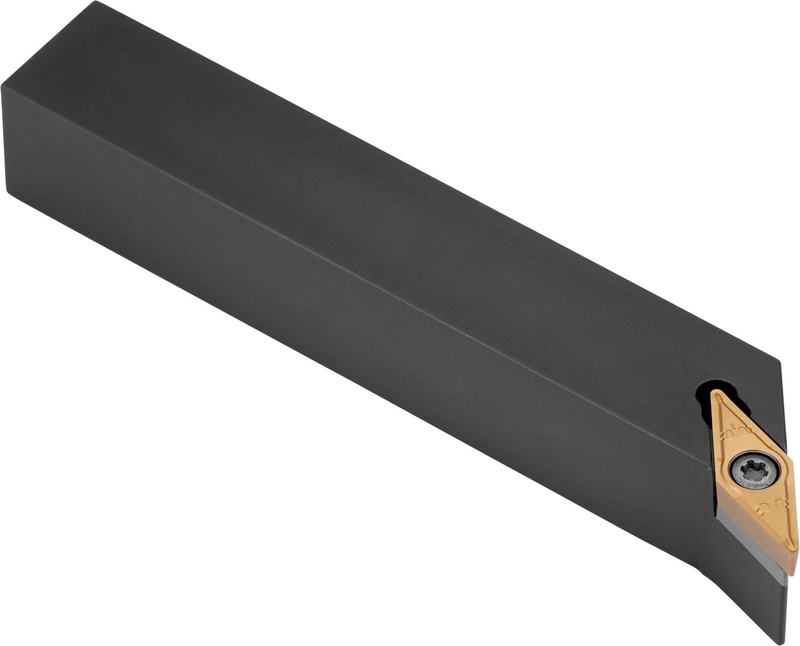

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VB.. 1604.. ou VC.. 1604.. ), coupe latérale à gauche à 107°30' avec queue déportée, hauteur d'outil de 25mm x largeur de 25mm x 150mm de long pour le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVHCL 2525 M 16-M-A
Product Number6756616
Product FamilySVHB(C)(SR) EXT

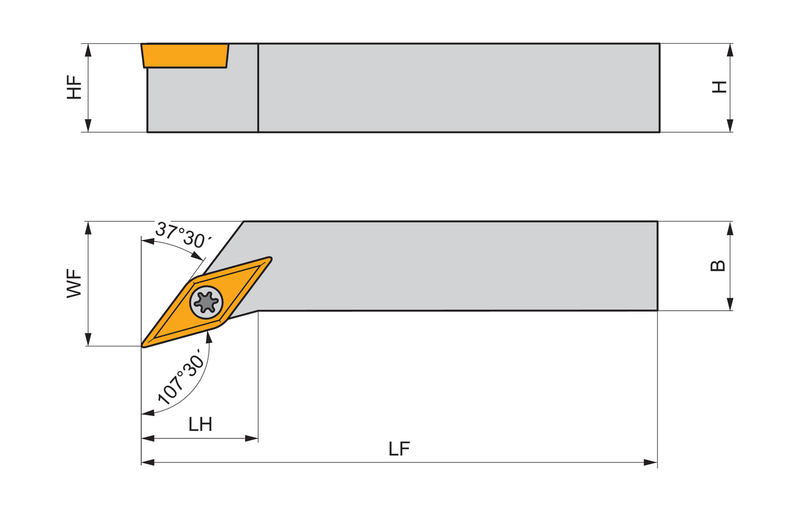

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756616
EAN3603602919823
File Type Download
SVHCL 2525 M 16-M-A — 3D Model STP Download
SVHCL 2525 M 16-M-A — Line Drawing PDF Download
