SVJCL 2525 M 16-M-A
SVJCL 2525 M 16-M-A
SVJCL 2525 M 16-M-A

SVJCL 2525 M 16-M-A

UGC DOR6756620
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

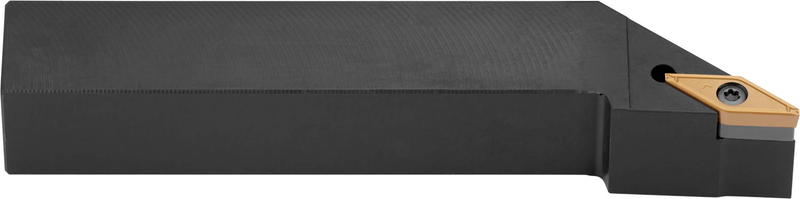

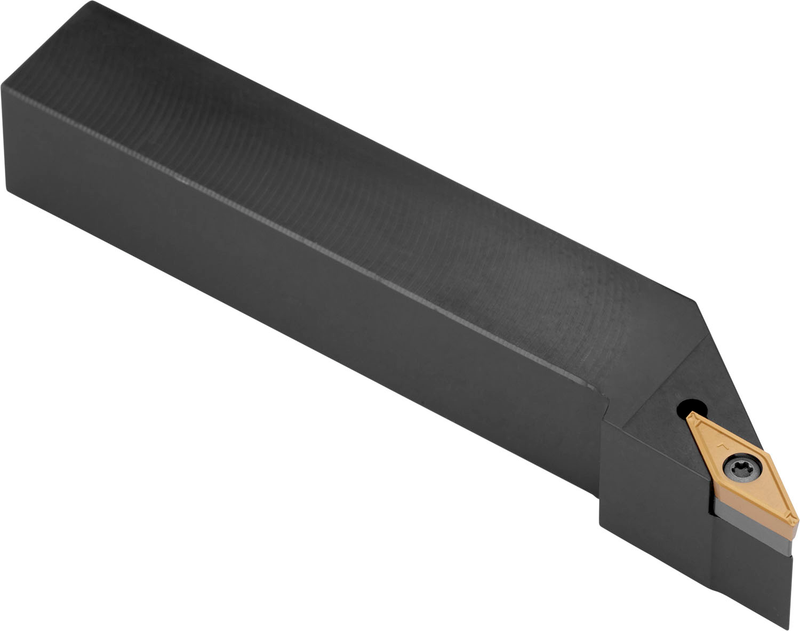

Outil de tournage à bride par vis pour plaquette positive en forme de losange à 35° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604..), coupe latérale à 93° à gauche avec un corps déporté, hauteur de l'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel, et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCL 2525 M 16-M-A
Product Number6756620
Product FamilySVJB(C)(RL) EXT

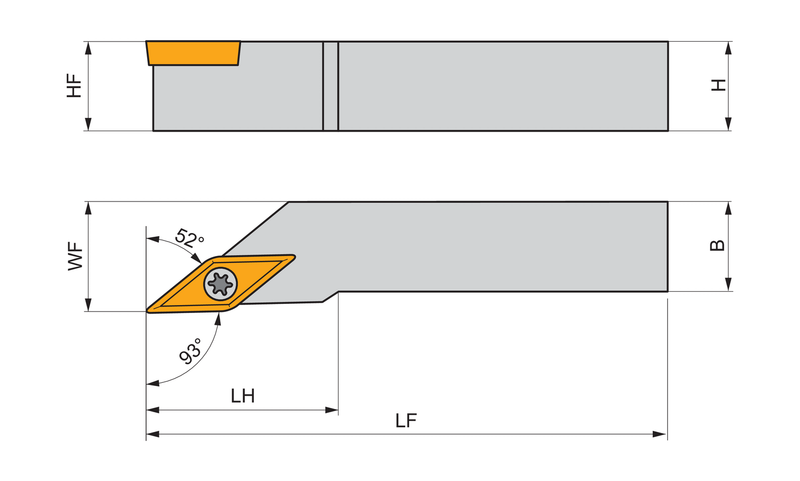

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756620
EAN3603602919861
File Type Download
SVJCL 2525 M 16-M-A — 3D Model STP Download
SVJCL 2525 M 16-M-A — Line Drawing PDF Download
