SVJCR 2020 K 16-M-A
SVJCR 2020 K 16-M-A
SVJCR 2020 K 16-M-A

SVJCR 2020 K 16-M-A

UGC DOR6756622
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

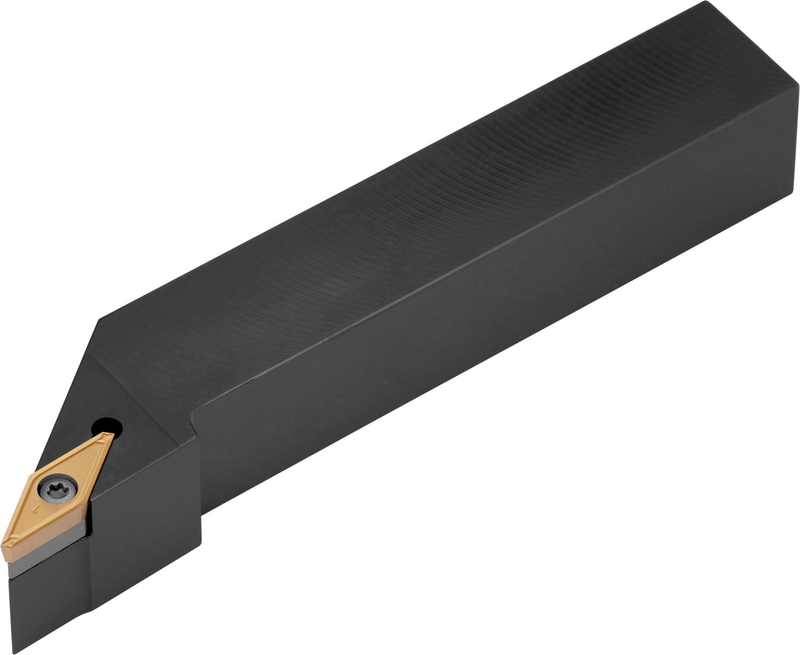

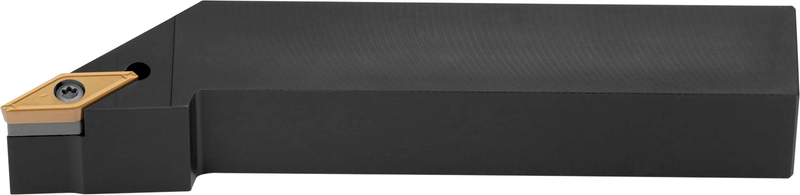

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525 mm, de 4,76 mm d'épaisseur (désignation ISO VB.. 1604.. ou VC.. 1604..), à coupe latérale droite de 93° avec un corps déporté, de 20 mm de hauteur x 20 mm de largeur x 125 mm de long pour le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCR 2020 K 16-M-A
Product Number6756622
Product FamilySVJB(C)(RL) EXT

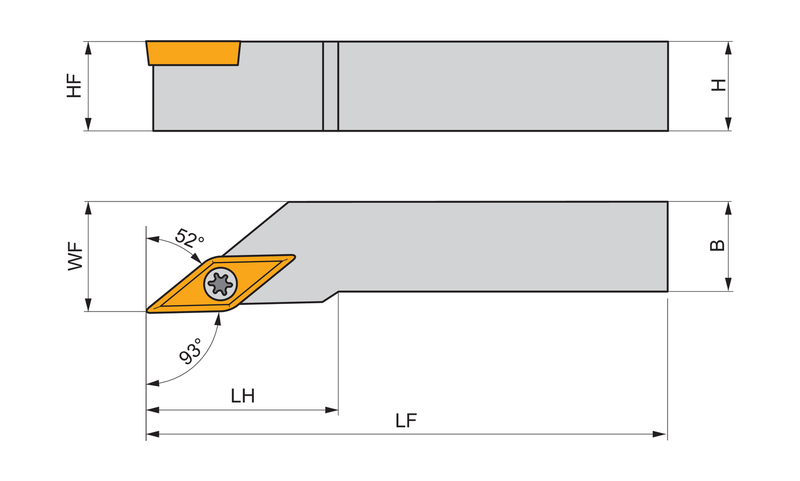

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756622
EAN3603602919885
File Type Download
SVJCR 2020 K 16-M-A — 3D Model STP Download
SVJCR 2020 K 16-M-A — Line Drawing PDF Download
