SVJCR 2525 M 16-M-A
SVJCR 2525 M 16-M-A
SVJCR 2525 M 16-M-A

SVJCR 2525 M 16-M-A

UGC DOR6756623
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

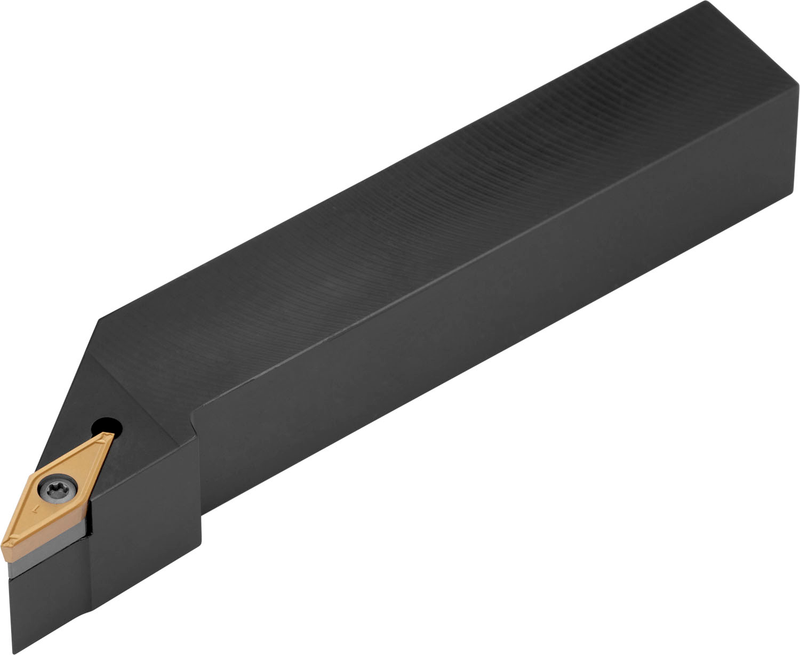

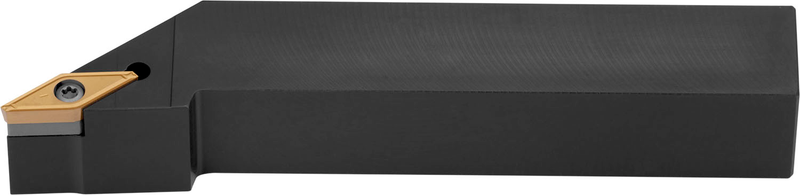

Outil de tournage à levier de serrage pour une plaquette positive en forme de losange à 35° avec un diamètre de cercle inscrit de 9,525 mm, de 4,76 mm d'épaisseur (désignation ISO VB.. 1604.. ou VC.. 1604..), à droite, coupe latérale à 93° avec un corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x 150 mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJCR 2525 M 16-M-A
Product Number6756623
Product FamilySVJB(C)(RL) EXT

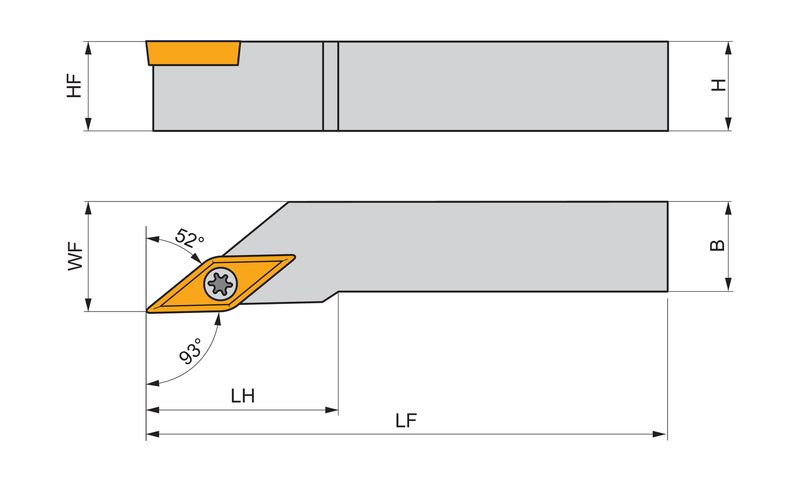

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756623
EAN3603602919892
File Type Download
SVJCR 2525 M 16-M-A — 3D Model STP Download
SVJCR 2525 M 16-M-A — Line Drawing PDF Download
