SVPCL 2020 K 16-M-A
SVPCL 2020 K 16-M-A
SVPCL 2020 K 16-M-A

SVPCL 2020 K 16-M-A

UGC DOR6756625
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

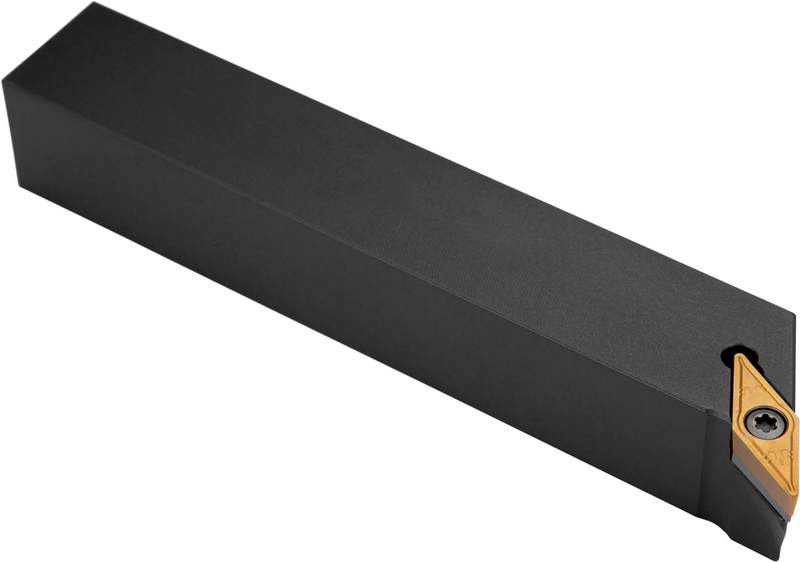

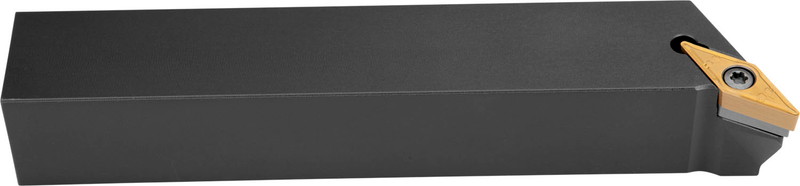

Outil de tournage à bride par vis pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525 mm, de 4,76 mm d'épaisseur (désignation ISO VB... 1604... ou VC... 1604...), à 62,5° à gauche, coupe à gauche et à droite, hauteur d'outil de 20 mm x largeur de 20 mm x 125 mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVPCL 2020 K 16-M-A
Product Number6756625
Product FamilySVPB(C)(RL) EXT

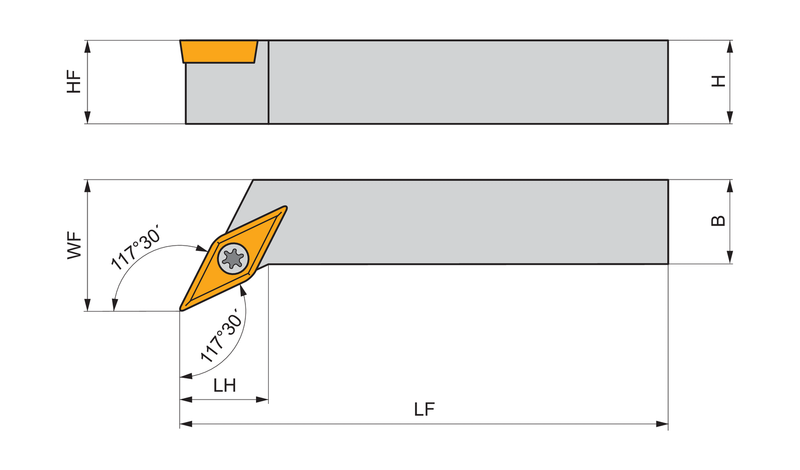

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756625
EAN3603602919915
File Type Download
SVPCL 2020 K 16-M-A — 3D Model STP Download
SVPCL 2020 K 16-M-A — Line Drawing PDF Download
