SVPCR 2525 M 16-M-A
SVPCR 2525 M 16-M-A
SVPCR 2525 M 16-M-A

SVPCR 2525 M 16-M-A

UGC DOR6756629
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

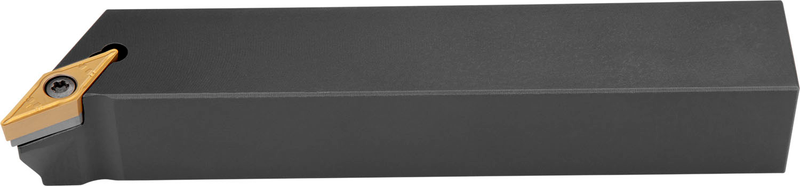

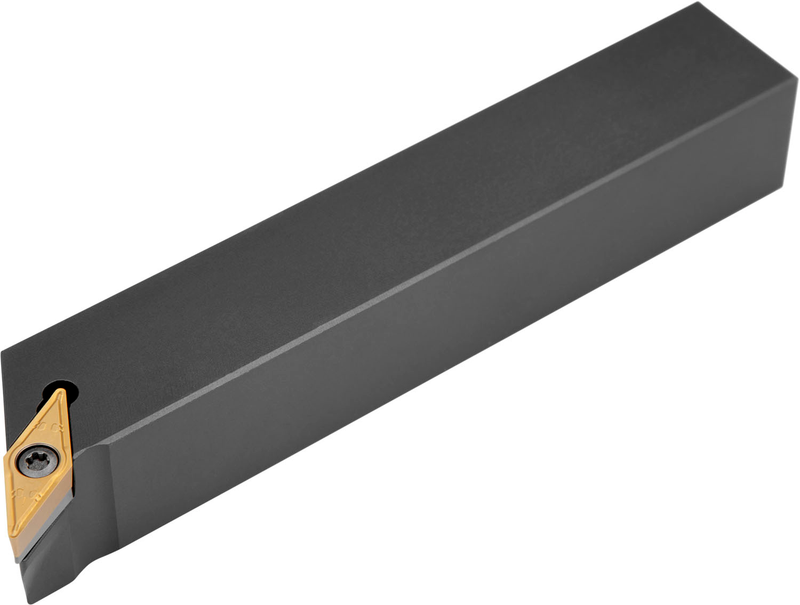

Outil de chariotage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO VB... 1604... ou VC... 1604...), droite 62,5°, coupe à droite et à gauche, hauteur de l'outil 25 mm x largeur 25 mm x longueur 150 mm pour le chariotage conique, le chariotage de contour unilatéral et bilatéral, le chariotage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVPCR 2525 M 16-M-A
Product Number6756629
Product FamilySVPB(C)(RL) EXT

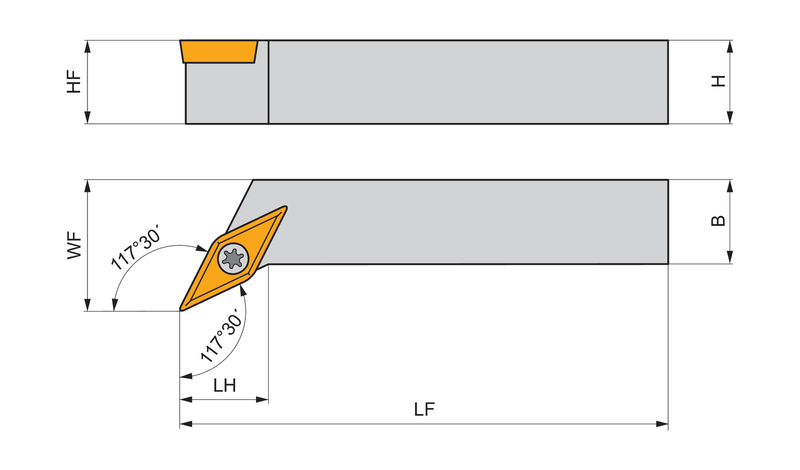

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756629
EAN3603602919953
File Type Download
SVPCR 2525 M 16-M-A — 3D Model STP Download
SVPCR 2525 M 16-M-A — Line Drawing PDF Download
