SVPCR 3225 P 16-M-A
SVPCR 3225 P 16-M-A
SVPCR 3225 P 16-M-A

SVPCR 3225 P 16-M-A

UGC DOR6756630
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$219.00 CAD - $219.00 CAD
$219.00 CAD
$219.00 CAD - $219.00 CAD
$219.00 CAD

Vendu en lots de : 1

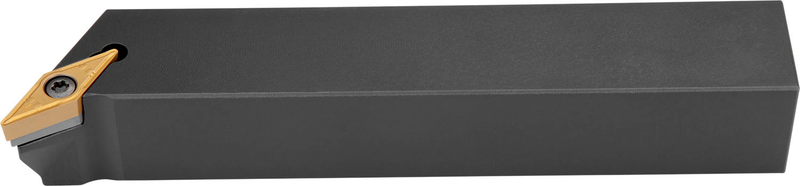

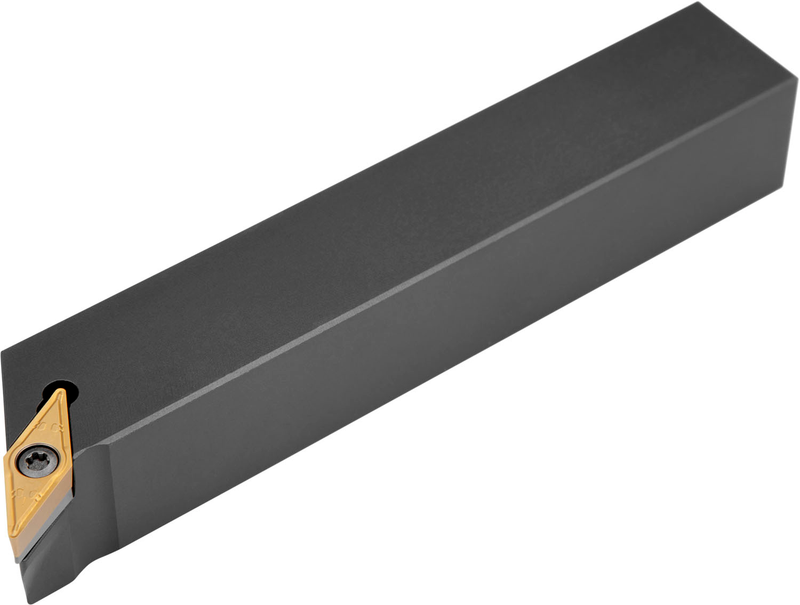

Outil de tournage à bride par vis pour plaquette positive en forme de losange à 35° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604.. ), droitier 62,5°, coupe latérale gauche et droite, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVPCR 3225 P 16-M-A
Product Number6756630
Product FamilySVPB(C)(RL) EXT

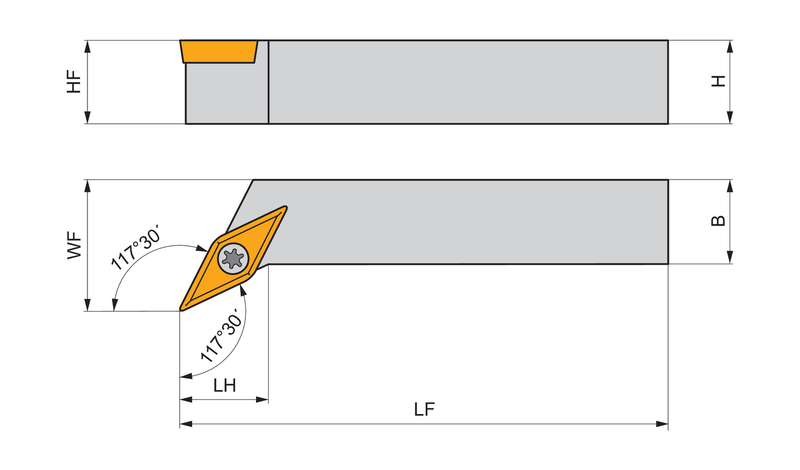

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756630
EAN3603602919960
File Type Download
SVPCR 3225 P 16-M-A — 3D Model STP Download
SVPCR 3225 P 16-M-A — Line Drawing PDF Download
