SVVCN 2020 K 16-M-A
SVVCN 2020 K 16-M-A
SVVCN 2020 K 16-M-A

SVVCN 2020 K 16-M-A

UGC DOR6756631
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

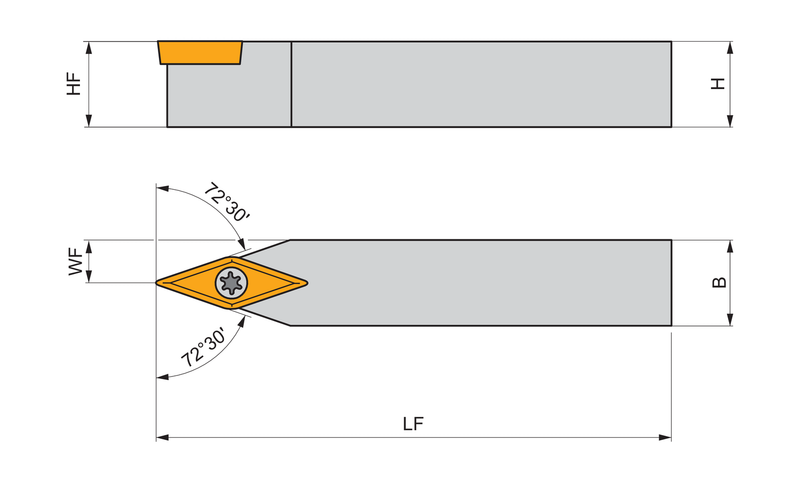

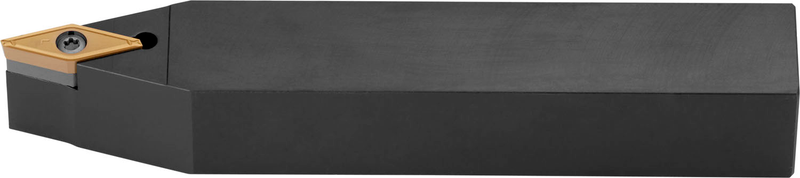

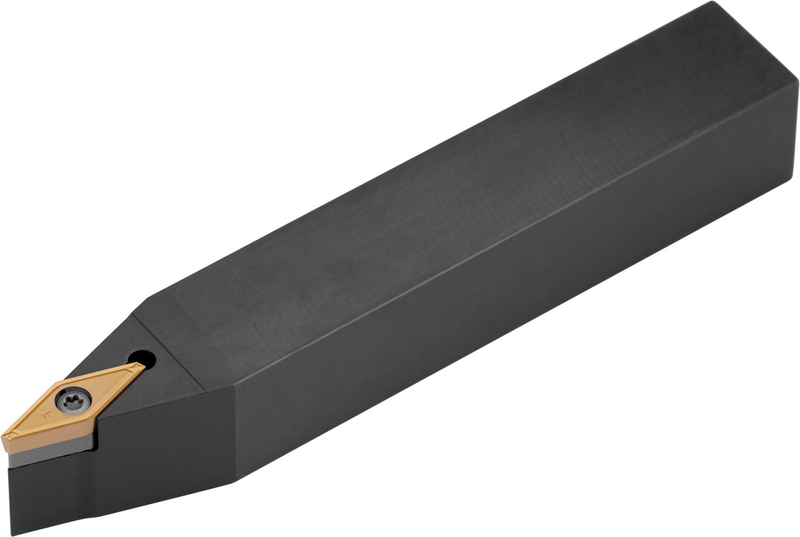

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525 mm, de 4,76 mm d'épaisseur (désignation ISO VB... 1604... ou VC... 1604...), coupe latérale neutre à 72°30' avec queue droite, hauteur d'outil de 20 mm x 20 mm de largeur x 125 mm de long pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVCN 2020 K 16-M-A
Product Number6756631
Product FamilySVVB(C)N EXT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756631
EAN3603602919977
File Type Download
SVVCN 2020 K 16-M-A — 3D Model STP Download
SVVCN 2020 K 16-M-A — Line Drawing PDF Download
