SVVCN 2525 M 16-M-A
SVVCN 2525 M 16-M-A
SVVCN 2525 M 16-M-A

SVVCN 2525 M 16-M-A

UGC DOR6756632
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

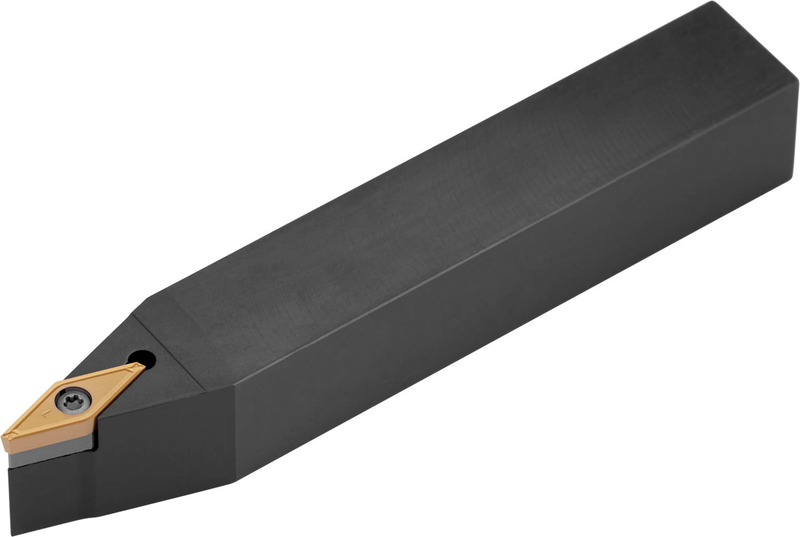

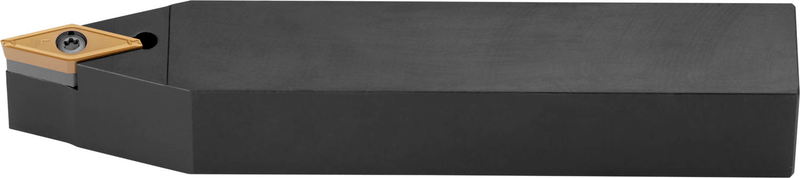

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO VB.. 1604.. ou VC.. 1604..), coupe latérale neutre à 72°30' avec queue droite, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique, le tournage de copie unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVCN 2525 M 16-M-A
Product Number6756632
Product FamilySVVB(C)N EXT

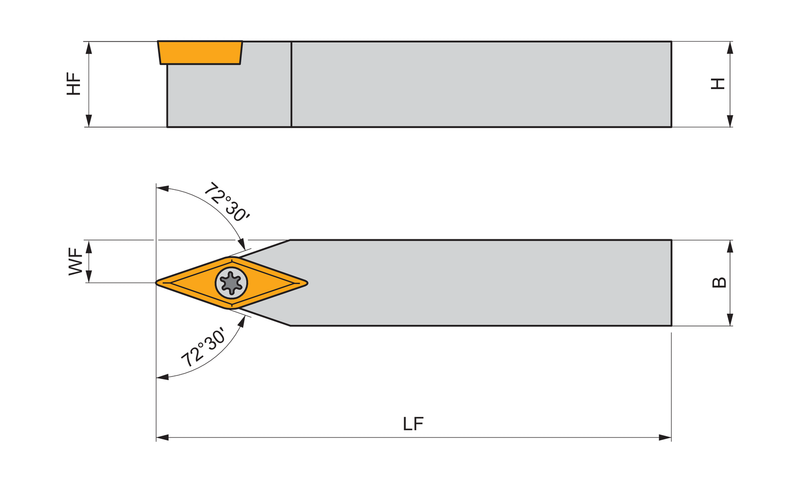

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6756632
EAN3603602919984
File Type Download
SVVCN 2525 M 16-M-A — 3D Model STP Download
SVVCN 2525 M 16-M-A — Line Drawing PDF Download
